20m² In-Screed Heating Pack @ 200mm Pipe Spacings

20m² Complete Water Underfloor Heating System Kit for New Builds & Extensions

This complete water underfloor heating kit is designed for new builds, extensions and renovation projects where pipework is installed into a screeded floor. Supplied with the key components required to install an efficient wet underfloor heating system, this bundle is ideal for installers, plumbers, heating engineers and competent DIY users looking for a practical all-in-one UFH solution.

The system uses flexible underfloor heating pipe laid across the floor area and connected back to a manifold, allowing warm water to circulate evenly beneath the finished floor. Once installed, the system provides comfortable radiant heat from the floor upwards, helping create a clean, efficient and space-saving heating setup.

System Coverage

- Coverage depends on the pipe spacing used and the heat requirement of the room:

• High Output – 150mm pipe spacing
• Suitable for conservatories, extensions and rooms with higher heat loss.
  Coverage: up to 15.0m²
• Total Room Heat – 200mm pipe spacing
• Suitable for general room heating in well-insulated areas.
  Coverage: up to 20.0m²
• Background Heat – 300mm pipe spacing
• Suitable for floor warming or use alongside radiators.
  Coverage: up to 30.0m²

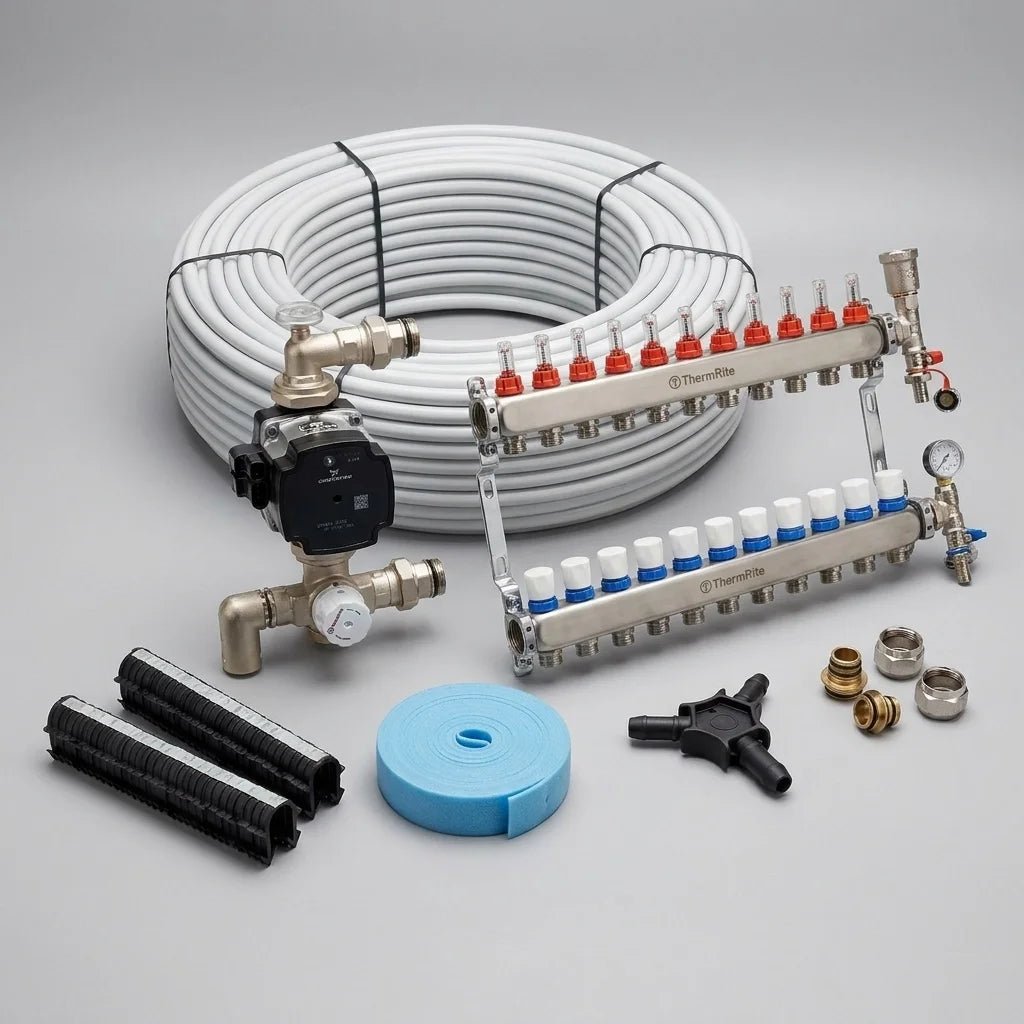

What’s Included

This bundle includes the essential components needed for a typical screeded water underfloor heating installation:

• Underfloor heating pipe
• High grip barbed pipe clips
• Edge insulation roll
• Pipe reaming, deburring and chamfering tool
• Connector cores / compression fittings for connecting pipework to the manifold
• Selected manifold and control components, depending on the kit option chosen
