SpiderFix20 Low-Profile Underfloor Heating Pipe Fixing Panel – 16mm Pipe
SpiderFix20 Low-Profile Underfloor Heating Pipe Fixing Panel – 16mm Pipe
Couldn't load pickup availability
SKU:SpiderFix20

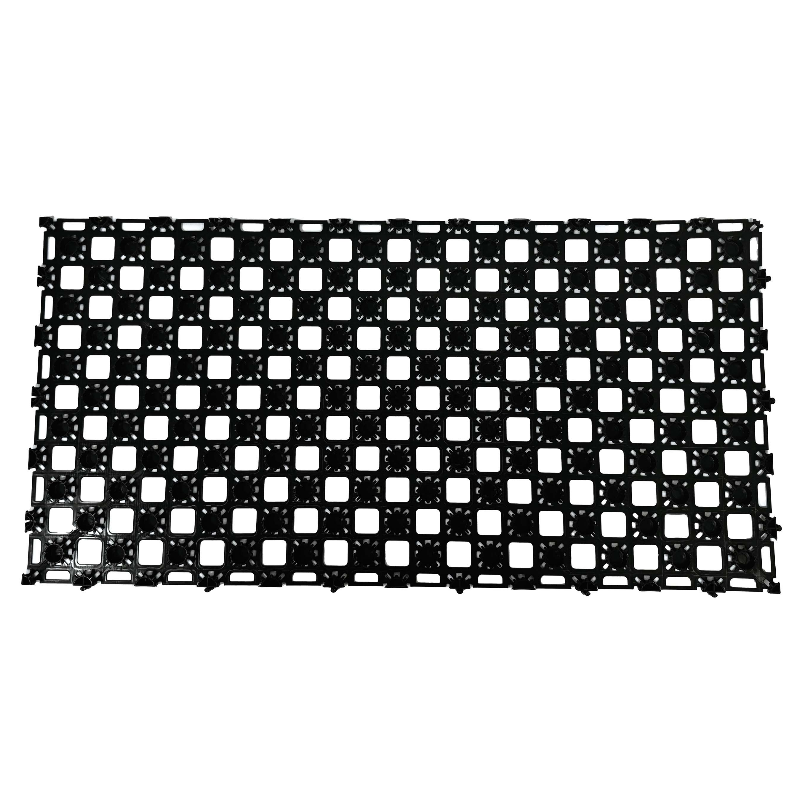

The SpiderFix20 Underfloor Heating Pipe Fixing Panel is a robust, low-profile panel designed to securely hold 16mm underfloor heating pipe in place. Manufactured from 100% recycled injection-moulded plastic, each panel measures 1200mm × 600mm × 20mm and is suitable for retrofit and new-build water underfloor heating installations.
Featuring a self-adhesive backing, interlocking snap-clips and integrated cutting grooves, SpiderFix20 panels provide a quick and flexible method of creating accurate UFH pipe layouts over concrete, suspended timber or suitable insulation boards.
Key Features
| Designed for 16mm UFH Pipe | Securely holds standard 16mm underfloor heating pipe within the panel. |
| Low-Profile Design | 20mm panel height helps minimise the overall underfloor heating floor build-up. |
| Self-Adhesive Backing | Provides a quick, clean and reliable method of fixing the panels to the subfloor. |
| Interlocking Snap-Clips | Allows adjoining panels to connect securely and form a continuous installation surface. |
| Flexible Pipe Spacing | Supports a range of pipe spacings to suit different room layouts and heating requirements. |
| 50mm Cutting Grooves | Integrated cutting points make the panels easier to trim around walls, corners and obstacles. |
Product Specifications
| Specification | Details |
|---|---|
| Product | SpiderFix20 UFH Pipe Fixing Panel |
| Panel Dimensions | 1200mm × 600mm × 20mm |
| Suitable Pipe Size | 16mm outside diameter UFH pipe |

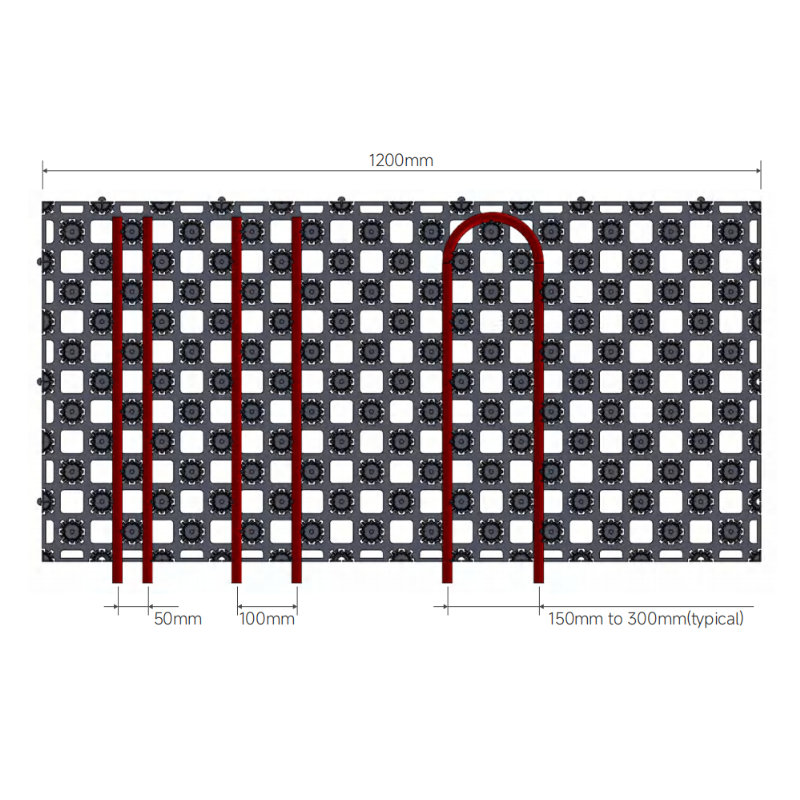

| Pipe Centres | 50mm, 100mm, 150mm and wider spacings depending on the pipe layout |
| Material | 100% recycled injection-moulded plastic |
| Fixing Method | Self-adhesive backing with interlocking panel connectors |
| Suitable Subfloors | Concrete, suspended timber and suitable insulation boards |
| Recommended Covering | Flexible fibre-reinforced self-levelling compound |
Ideal For
- Low-profile water underfloor heating installations
- Retrofit, renovation and new-build projects
- Installing 16mm UFH pipe over concrete or suspended timber floors
- Installations over suitable insulation boards
- Projects requiring flexible pipe spacing and accurate pipe positioning
Installation Overview
Fix the SpiderFix20 panels to a clean and suitable subfloor using the factory-applied self-adhesive backing. Connect adjoining panels using the integrated snap-clips before pressing the 16mm UFH pipe into position according to the system design.
Once the pipework has been installed and pressure tested, apply a suitable flexible fibre-reinforced self-levelling compound to create a flat and stable surface, improve heat transfer and prepare the installation for the selected floor finish.
Click Here For Installation Document & Datasheet
Why Choose SpiderFix20?
The SpiderFix20 pipe fixing panel provides a fast and adaptable alternative to traditional UFH pipe-fixing methods. Its self-adhesive backing, secure pipe retention and flexible spacing options help installers produce accurate pipe layouts while maintaining a low overall floor profile.
Quick Summary
A 1200mm × 600mm × 20mm recycled-plastic underfloor heating pipe fixing panel for 16mm pipe, featuring self-adhesive backing, interlocking connectors, flexible pipe spacing and integrated cutting grooves.
