HeatBoard ONE Grooved Chipboard Underfloor Heating Kits

Shop complete HeatBoard ONE underfloor heating kits with 22mm grooved chipboard panels at ThermRite Shop. These warm water underfloor heating kits are designed for timber floor projects, joisted floors, suspended floors, renovations, extensions and new builds where a strong dry-floor UFH system is required.

This collection includes ThermRite HeatBoard ONE UFH kits from 10m² to 144m², using 1200mm x 600mm all-in-one grooved chipboard heating panels. The HeatBoard ONE panel acts as both the structural chipboard floor deck and the pipe-retention board, allowing 12mm underfloor heating pipe to be installed directly into the routed grooves within the board.

Each kit brings together the key components required for a practical warm water underfloor heating installation, including ThermRite HeatBoard ONE grooved chipboard panels, 12mm UFH pipe, manifold components, pipe connectors and pump pack options, depending on the selected kit size.

Key Benefits of ThermRite HeatBoard ONE UFH Kits

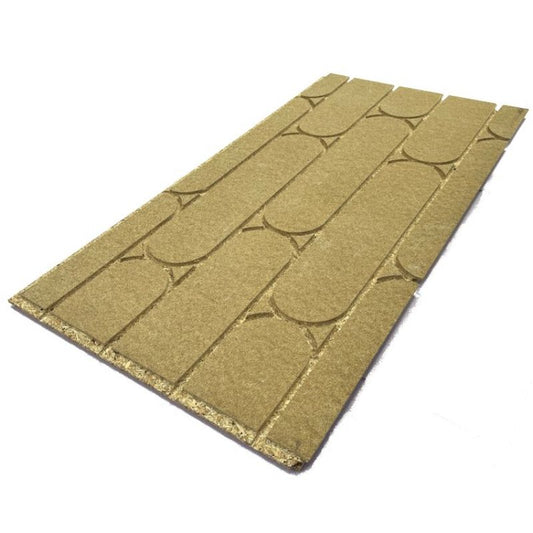

All-In-One Grooved Chipboard Heating Panel

The ThermRite HeatBoard ONE system uses 22mm routed chipboard panels designed to form part of the floor deck while holding the UFH pipe securely within pre-cut grooves. This makes it a practical choice for joisted floors, timber floor constructions and dry underfloor heating projects.

Designed for 12mm Water Underfloor Heating Pipe

HeatBoard ONE panels are designed for 12mm warm water underfloor heating pipe. The pipe is pressed into the routed channels within the chipboard panel, helping create a neat and secure pipe layout without needing a separate overlay panel layer.

Dry Installation with No Screed Required

HeatBoard ONE kits are designed as a dry-floor alternative to traditional screeded UFH systems. This helps reduce drying times and makes the system suitable for timber floor builds, suspended floors and renovation projects where a screed layer is not suitable.

Structural Chipboard Floor Deck with UFH Built In

The 22mm grooved chipboard panels are designed to combine the floor deck and UFH pipe channels in one board. This helps reduce the need for separate pipe-retention boards and allows the heating system to be integrated into the floor structure.

Suitable for Timber and Joisted Floors

HeatBoard ONE is ideal for timber floor projects, joisted floor constructions, suspended floors and projects where underfloor heating needs to be installed directly as part of the chipboard floor deck.

Optional Higher Output Panel Choices

Depending on the system design and product options selected, HeatBoard ONE systems may be available with standard grooved chipboard panels or higher output foiled panel options to help improve heat transfer through the floor build-up.

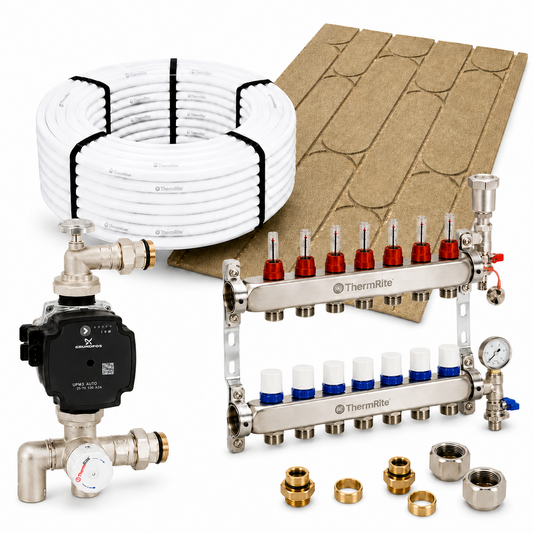

What’s Included in a ThermRite HeatBoard ONE UFH Kit?

A complete ThermRite HeatBoard ONE underfloor heating kit normally includes the main components needed for a warm water UFH installation. The exact contents can vary depending on the kit size, manifold size and system requirements, so always check the individual product listing before ordering.

Component What It Does Typical Use
ThermRite HeatBoard ONE Grooved Chipboard Panels Form part of the floor deck while holding the UFH pipe within routed channels. Laid over suitable joists or timber floor structures as part of the dry-floor heating system.
12mm UFH Pipe Carries warm water through the underfloor heating circuits. Pressed into the routed grooves within the HeatBoard ONE chipboard panels.
Manifold Components Distribute water through each UFH pipe circuit. Used to control and balance flow across multiple heating loops.
Pump Pack / Temperature Control Unit Helps circulate and regulate water temperature through the UFH system. Commonly fitted with manifold-based warm water underfloor heating systems.
Pipe Connectors Connect the UFH pipework to the manifold and system components. Used during final pipework connection and commissioning.

ThermRite HeatBoard ONE Panels: When Are They Suitable?

ThermRite HeatBoard ONE panels are designed for warm water underfloor heating installations where the UFH system needs to be built into a chipboard floor deck. They are especially suitable for timber floor constructions, joisted floors, suspended floors, renovations and new build projects where pipework needs to be integrated into routed chipboard panels rather than installed into screed.

Best Uses for ThermRite HeatBoard ONE UFH Kits

Joisted Floor Installations

HeatBoard ONE kits are ideal for joisted floor projects where the grooved chipboard panel can form part of the floor deck while holding the underfloor heating pipe in position.

Timber Floor Projects

The 22mm grooved chipboard system is suitable for timber floor constructions where a dry warm water UFH system is preferred over a traditional screeded installation.

Suspended Floors

A practical option for suspended timber floors where a screed layer is not suitable and the heating system needs to be installed within the floor deck.

Renovations

Suitable for refurbishment projects where an existing timber floor is being replaced or upgraded and a dry underfloor heating system is required.

New Builds and Extensions

A strong choice for new build projects and extensions using timber floor construction or dry-floor underfloor heating methods.

Trade Installations

A convenient kit format for installers, plumbers and heating engineers working on warm water UFH projects using grooved chipboard floor deck systems.

Frequently Asked Questions

What is a ThermRite HeatBoard ONE underfloor heating kit?

A ThermRite HeatBoard ONE underfloor heating kit is a warm water UFH system using 22mm grooved chipboard panels that act as both the floor deck and the pipe-retention board. The system is designed for dry-floor heating projects where screed is not required.

Where does the pipe sit in this system?

The UFH pipe sits within the routed grooves of the HeatBoard ONE chipboard panel. The pipe is installed into the board itself, not above the finished floor surface.

Does HeatBoard ONE need screed?

No, HeatBoard ONE kits are designed as a dry-floor underfloor heating system and do not require a traditional screed layer.

Are these kits suitable for timber floors?

Yes, HeatBoard ONE kits are designed for timber floor constructions, joisted floors, suspended floors and projects where grooved chipboard heating panels are required.

What pipe size does HeatBoard ONE use?

HeatBoard ONE panels are designed for 12mm warm water underfloor heating pipe. Always check the individual product listing and installation guidance before ordering or fitting the system.

Can HeatBoard ONE panels be installed directly onto joists?

HeatBoard ONE panels are designed for joisted and timber floor applications, subject to the correct joist centres, floor structure, fixing method and installation guidance. Always ensure the substructure is suitable before installation.

Can the final floor finish be installed over HeatBoard ONE?

Suitable final floor finishes can be installed above HeatBoard ONE when the correct preparation, underlays, adhesives, levelling layers or cover boards are used for the chosen floor finish. Always follow the floor finish manufacturer’s guidance.

What size HeatBoard ONE UFH kit should I choose?

Choose the kit size that most closely matches your heated floor area. Always allow for the actual heated area, manifold location, pipe route, fixed furniture and any unheated zones before ordering.

Do these kits include everything needed for installation?

The kits are designed to include the key UFH components required for a typical ThermRite HeatBoard ONE warm water underfloor heating installation. Always check the individual product page for the exact contents of each kit before ordering.

How is HeatBoard ONE different from HeatBoard Thermo?

HeatBoard ONE is an all-in-one 22mm grooved chipboard floor deck system that holds the UFH pipe within the board. HeatBoard Thermo uses grooved chipboard heating panels with separate cement cover boards installed above the heating layer.

How is this different from an overlay panel system?

An overlay panel system normally uses low-profile insulation panels installed above an existing floor. HeatBoard ONE uses grooved chipboard panels as part of the floor deck, making it more suitable for joisted timber floor constructions and dry-floor UFH build-ups.

How is this different from an in-screed UFH system?

An in-screed underfloor heating system has pipework installed into a screeded floor build-up. ThermRite HeatBoard ONE is a dry-floor system using routed chipboard panels, so no screed layer is required.
