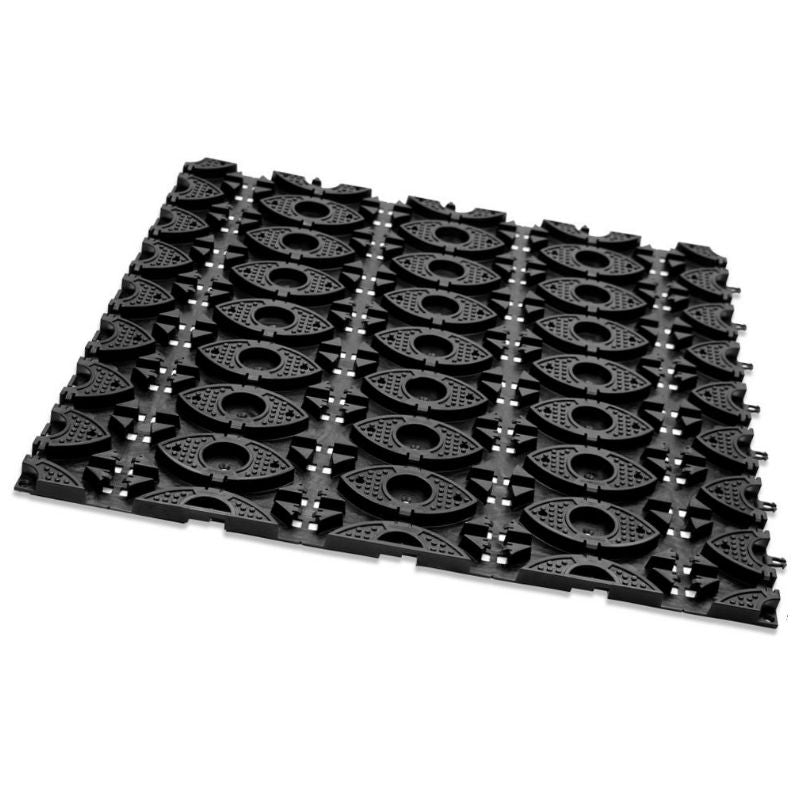

Profix Panel – 15mm Low Profile UFH Panel – High Output Pipe Retention System for 12mm Pipe @ 150mm Centres

The Profix™ Panel is a revolutionary underfloor heating solution offering exceptionally high heat output in a low-profile 15mm system. Engineered for speed, simplicity, and thermal efficiency, the Profix™ system is ideal for retrofit and low-build installations—delivering performance that outshines traditional grooved insulation boards.

Designed specifically for 12mm pipe at 150mm centres, the unique panel structure allows for the self-levelling screed to fully encapsulate the pipe, creating a greater thermal mass and maximising heat transfer across the full surface of the pipe—not just the top portion.

Thanks to its interlocking design and modular 600mm x 600mm panel size, the Profix™ Panel is fast and simple to install. It can be laid over a range of floor types, and depending on your floor finish, it can be used with or without a self-levelling compound for maximum flexibility.

Key Features:

• Ultra Low Profile – Just 15mm Thick
• Exceptional Heat Output – Full pipe encapsulation
• Compatible with 12mm Pipe @ 150mm Centres
• Suitable for Wet or Dry UFH Systems
• Panel Size: 600mm x 600mm
• Pack Quantity: 10 Panels (Covers 3.6m²)
• Optional Pre-Bonded Insulation (3–10mm)

Whether you're working on a renovation, retrofit, or new build, the Profix™ Panel delivers an unbeatable combination of low build-up height and high thermal performance, ready to support tile, wood, carpet, or laminate finishes.

Click for: Product Installation & Data Sheet

Frequently Asked Questions

• What pipe size is compatible with the Profix™ Panel?

The panel is designed for use with 12mm underfloor heating pipe, laid at 150mm centres.

• How does the Profix™ Panel provide higher heat output than grooved insulation boards?

Unlike traditional grooved boards, the Profix™ system allows the self-levelling compound to fully surround the pipe, creating a larger thermal mass and allowing better heat transfer from the full surface of the pipe.

• What is the total system depth with a self-levelling layer?

The base panel is 15mm thick. With a thin self-levelling layer added (typically 3mm above the pipe), the full build-up can remain 18mm, depending on the finish.

• Can this system be used without screed?

Yes, in some applications such as under wood, laminate, or carpet, the Profix™ system can be installed as a dry system without a self-levelling compound.

• Is insulation included with the panels?

Insulation is optional. You can choose from 3mm, 6mm or 10mm Profix insulation, either pre-bonded to the panels or purchased separately.
