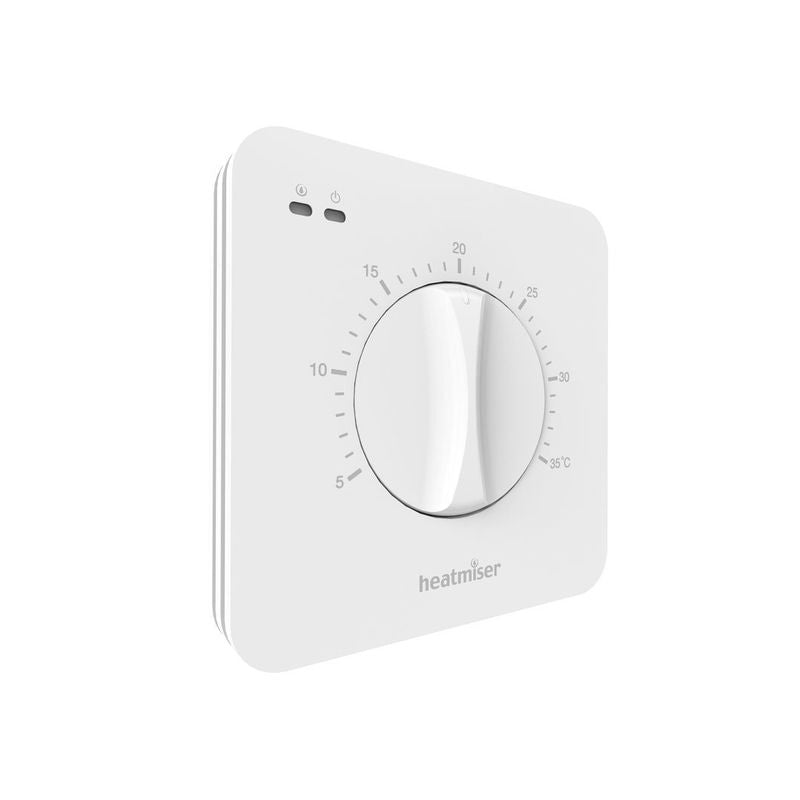

Heatmiser Set Back Thermostat DS-SB-V3

The Heatmiser DS-SB is our flush mount set back thermostat ideal for those wanting a simple but energy efficient control system.

The Heatmiser DS-SB features a set back function, a function that will automatically reduce the set temperature by 4C when no time clock signal is detected therefore providing more flexible control of your heating.

The DS-SB features a set back function, a function that will automatically reduce the set temperature by 4C when the time clock is off.

The DS-SB setback thermostat has been designed to work in conjunction with our UH8 wiring centre and TM4 Programmer, but could equally be used as a standalone dial thermostat.

Please note this thermostat is flush mounting, so a back box is required prior to installation.

Functions include:

• Slide switch mode select (Constant, Off, Time Clock)
• Flush Mount
• Remote Air Sensor Function: Probe Optional
• 05-35C Temperature Range
• 4C Set Back Function
• 230V 3A Switch Rating
• CE Approved
• Dimensions:  92mm x  92mm x 14mm (Height, Width, Depth, once installed)
• 4 core cabling is required from the time clock in order to use the set back function.

Click for: Product Installation & Data Sheet
