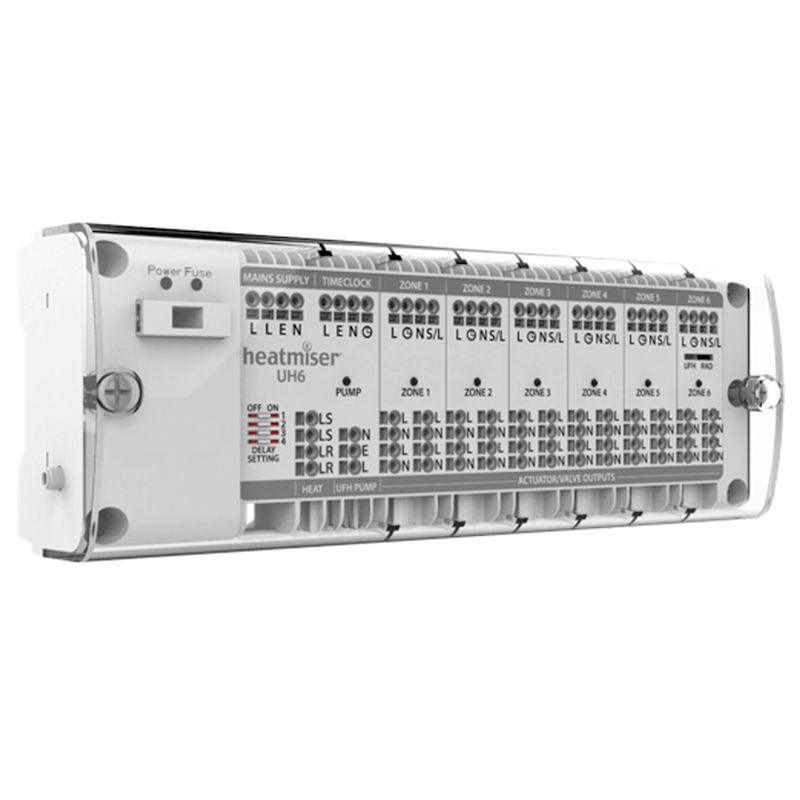

Heatmiser UH6 Compact Wiring Centre – 6 Zone Underfloor Heating Controller

The Heatmiser UH6 is a compact 6 zone wiring centre designed for optimum control of your underfloor heating system.

Compatible with Heatmiser 230V thermostats, the UH6 provides central switching for up to 6 heating zones. It’s ideally installed next to the underfloor heating manifold, offering convenient control over your heating setup.

When any zone calls for heat, the UH6 activates a 230V output to switch the relevant zone actuators, underfloor heating pump, and valve. A volt-free boiler connection ensures compatibility with nearly all types of boilers.

Each zone supports up to 4 actuators, allowing efficient management of multiple heating circuits.

🔧 Key Features:

• Central wiring for up to 6 heating zones
• Supports 4 actuators per zone
• Outputs for underfloor heating valve and pump
• Volt-free output for boiler control
• Compatible with Heatmiser 230V thermostats
• DIN rail mounting option (DIN rail not included)
• Actuator outputs: 230V
• Dimensions: 384 x 148 x 60mm

Click Here For: PRODUCT DATA SHEET

❓ Frequently Asked Questions (FAQs)

1. What is the Heatmiser UH6 Wiring Centre?

The UH6 is a compact wiring centre designed to control up to 6 zones of underfloor heating with central switching for actuators, pump, valve, and boiler.

2. How many actuators can be connected to each zone?

Each zone supports up to 4 actuators to manage multiple heating circuits.

3. Which thermostats are compatible with the UH6?

The UH6 is compatible with Heatmiser 230V wired thermostats.

4. What outputs does the UH6 provide?

It offers 230V outputs for zone actuators, underfloor heating pump, and valve, plus a volt-free connection for boiler control.

5. Can the UH6 be installed on a DIN rail?

Yes, the UH6 has a DIN rail mounting option, though the DIN rail itself is not included.

6. What are the dimensions of the UH6?

The UH6 measures 384mm x 148mm x 60mm, making it compact and easy to fit near heating manifolds.
