10m² ThermRite HeatBoard THERMO Grooved Chipboard & Printed Cement Cover Board Underfloor Heating Kit
10m² ThermRite HeatBoard THERMO Grooved Chipboard & Printed Cement Cover Board Underfloor Heating Kit
Couldn't load pickup availability
SKU:HBTHERMO10 Kit
The 10m² ThermRite HeatBoard THERMO Grooved Chipboard & Printed Cement Cover Board Underfloor Heating Kit is a complete dry-fit water underfloor heating system designed for joisted floors, suspended timber floors, renovations and new build projects where a structural routed chipboard UFH solution is required.
Designed for total room heating in well-insulated areas, this pack includes the key UFH components required to install a practical warm water underfloor heating system using 22mm grooved & foiled chipboard HeatBoard panels, 12mm underfloor heating pipe, printed 6mm fibre cement cover boards, connector cores, manifold components and a Grundfos UPM3 pump pack with temperature control unit.
Key Features
| Covers Up To 10m² | Designed for smaller dry-fit water underfloor heating installations using HeatBoard grooved chipboard panels and 12mm pipe at 150mm centres. |
| Complete HeatBoard THERMO UFH Kit | Includes the essential components needed for a typical routed chipboard water underfloor heating installation. |
| 22mm Grooved Chipboard Panels | Structural routed chipboard panels designed to form part of the floor deck while holding 12mm UFH pipe within pre-cut grooves. |

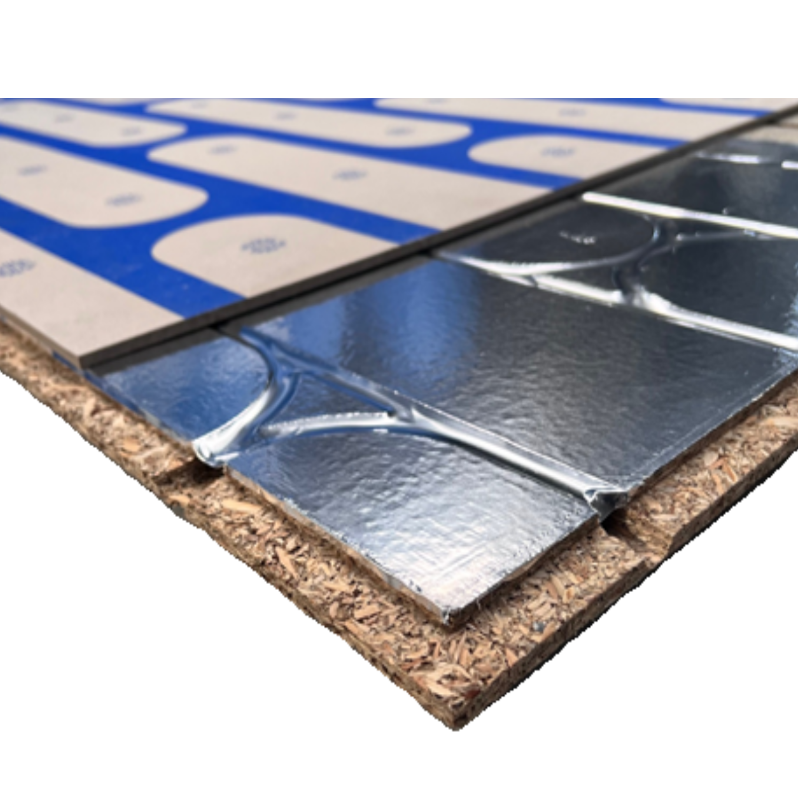

| Printed Cement Cover Board Upgrade | Supplied with upgraded printed 6mm fibre cement cover boards featuring visible pipe-route markings to help identify pipe positions beneath the surface. |
| Tile-Ready Floor Build-Up | The cement cover board creates a strong, water-resistant and stable surface suitable for ceramic and porcelain tiles when installed correctly. |
| Grundfos UPM3 Pump Pack Included | Supplied with pump and temperature control unit for reliable system circulation and mixing. |

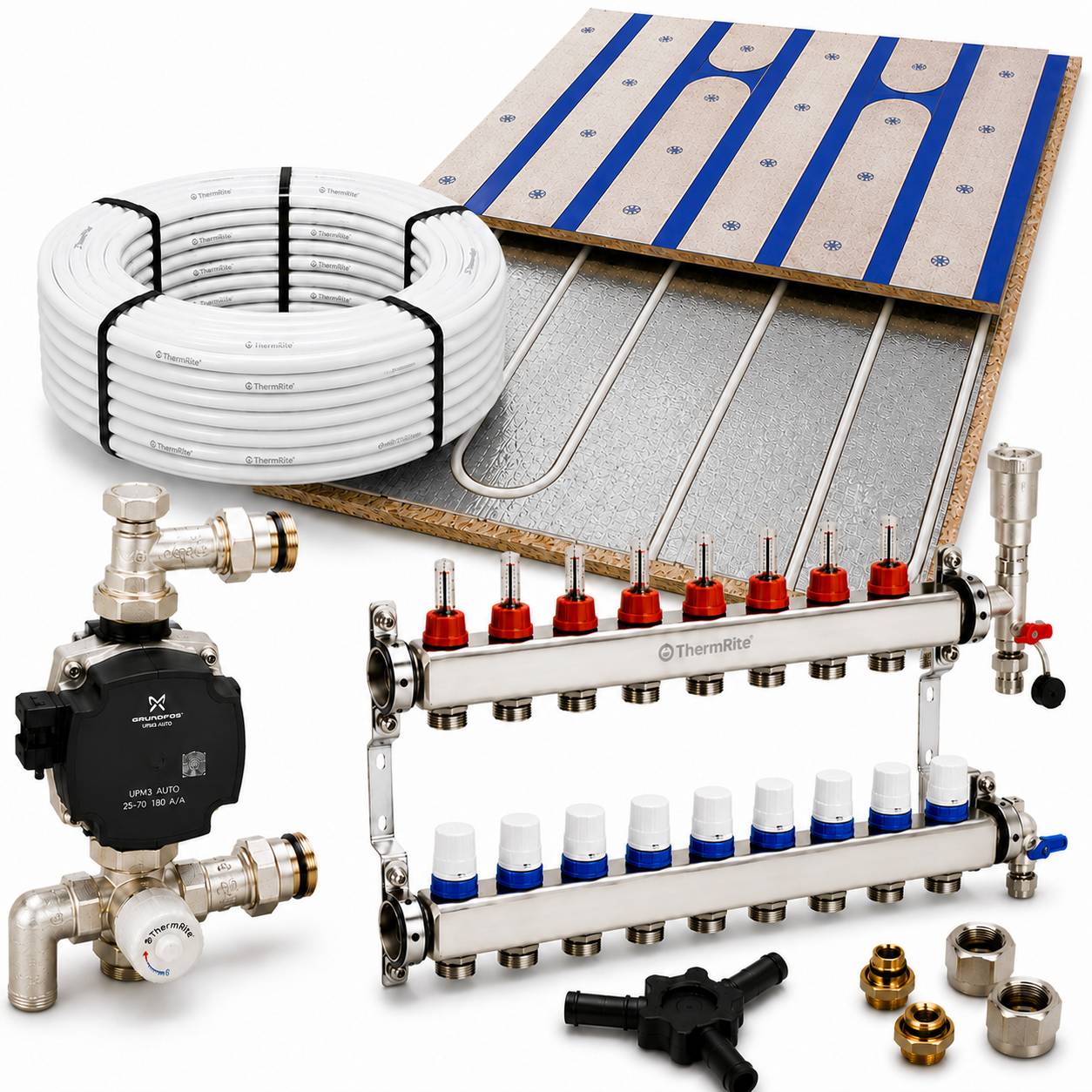

What’s Included?
| Component | Quantity / Details |
|---|---|
| ThermRite HeatBoard Grooved Chipboard Panels (0.72m²) | 14 panels covering up to 10m² |
| Printed 6mm Fibre Cement Cover Boards (1.08m²) | 10 x supplied to suit the 10m² kit area |
| Underfloor Heating Pipe | 80m x 12mm multilayer UFH pipe supplied to suit the 10m² kit area |
| Pipe Layout Guide | Installation layout guidance for the HeatBoard grooved chipboard system |
| Pipe Cutter | Pipe cutting tool included |
| Pipe Reaming Tool | Deburring and chamfering tool included |
| Connector Cores | 4 pcs |
| Manifold & Control Components | 2 port setup |
| Pump Pack | Grundfos UPM3 UFH pump pack and temperature control unit |
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Complete dry-fit routed chipboard water underfloor heating kit with printed cement cover boards |
| Coverage | Up to 10m² |
| Panel Type | ThermRite HeatBoard grooved chipboard panel |
| Panel Thickness | 22mm |
| Panel Size | 1200mm x 600mm, 0.72m² per panel |
| Cover Board Type | Printed fibre cement cover board with visible pipe-route markings |
| Cover Board Thickness | 6mm |
| Board Build-Up | 28mm total board build-up before adhesive and final floor finish |
| Pipe Size | 12mm multilayer underfloor heating pipe |
| Pipe Spacing | 150mm centres |
| Floor Type | Joisted floors, suspended timber floors and routed chipboard floor deck systems |
| Suitable Floor Finishes | Ceramic tiles, porcelain tiles and other compatible floor finishes when installed to the correct method |
| Manifold Size | 2 port |
| Pump Pack | Grundfos UPM3 pump pack with temperature control unit |
| Suitable Projects | Bathrooms, kitchens, small rooms, renovations, extensions, new builds and suspended timber floor UFH projects |
| SKU | HBTHERMO10 Kit |
Ideal For
- 10m² water underfloor heating installations
- Joisted and suspended timber floor projects
- Bathrooms, kitchens, utility rooms and smaller living areas
- Tile-ready UFH floor build-ups
- Renovations, extensions and new build heating projects
- Installations where visible pipe-route guidance is useful after the cover board is fitted
- Installers, plumbers, heating engineers and competent DIY users
Why Choose This 10m² ThermRite HeatBoard THERMO UFH Kit?
This 10m² ThermRite HeatBoard THERMO underfloor heating kit provides a convenient all-in-one solution for installing water UFH directly into a routed chipboard floor deck. The 22mm grooved chipboard panels are designed to hold 12mm UFH pipe at 150mm centres, helping create a neat dry-fit installation without the need for a traditional screed build-up.
The supplied printed 6mm fibre cement cover boards are an upgrade over plain cement cover boards. The printed markings help identify the pipe routes beneath the surface, which is useful when tiling, planning fixings or working over the completed floor build-up.
The cement cover board layer also strengthens the surface of the routed chipboard system and creates a stable, water-resistant substrate for suitable tiled floor finishes. This makes the HeatBoard THERMO system a practical option for projects where a structural floor deck, underfloor heating and tile-ready covering layer are required in one complete kit.
Installation note: Pipework should be fully installed and pressure-tested before fitting the printed cement cover boards. Printed pipe-route markings are designed as a visual guide and should not replace careful installation checks. Always avoid fixing through pipe routes and follow the correct fixing, adhesive and floor finish guidance for the chosen covering.
Quick Summary
A complete 10m² ThermRite HeatBoard THERMO dry-fit water underfloor heating kit using 22mm routed chipboard panels, printed 6mm fibre cement cover boards with pipe-route markings, 12mm UFH pipe at 150mm centres, pipe layout guidance, pipe cutter, pipe reaming tool, connector cores, 2 port manifold components and a Grundfos UPM3 pump pack with temperature control unit.
