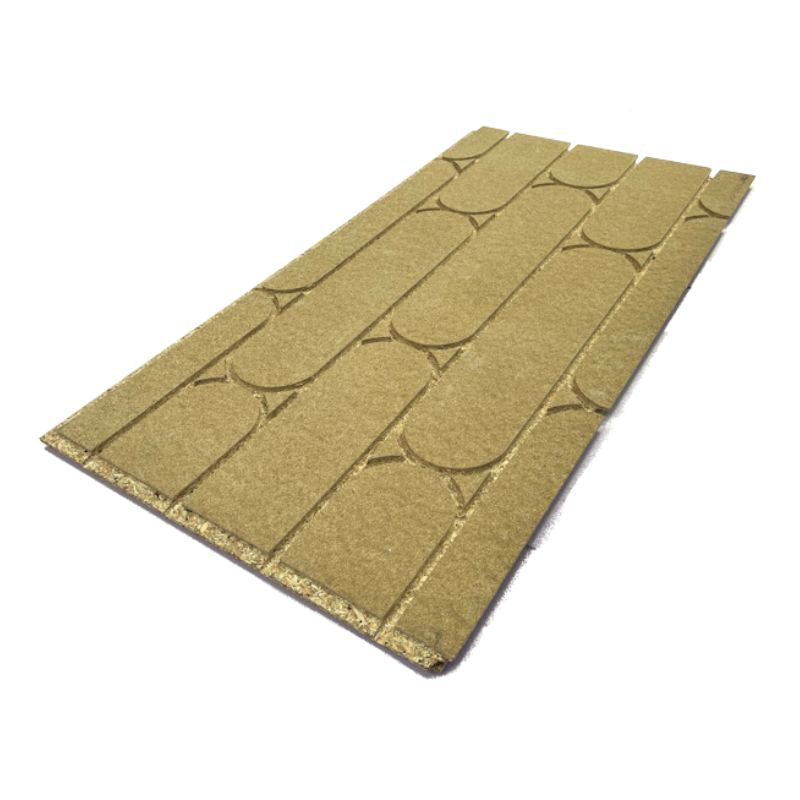

HeatBoard ONE 1200x600mm – Easy Lay 22mm Grooved Chipboard Panel for Underfloor Heating

HeatBoard ONE is the ultimate all-in-one solution for underfloor heating systems. This 22mm thick grooved chipboard panel is designed to offer an easy lay installation with pre-grooved channels that securely hold the heating pipes in place, creating a highly efficient heating system.

The HeatBoard ONE 1200x600mm panels provide an excellent thermal performance with minimal floor height increase, making it ideal for retrofit or new build underfloor heating installations. The grooved channels help secure the heating pipes at the correct spacing, and the chipboard is moisture-resistant, ensuring the system performs effectively for years.

This panel is also lightweight and easy to handle, allowing for a quick installation process, reducing the overall time and labor cost of installation. Once the panels are laid, you can install your floor finish directly on top, including tile, laminate, or engineered wood, making it the perfect solution for heating under almost any type of flooring.

Key Features:

• Dimensions: 1200mm x 600mm
• Thickness: 22mm
• Grooved Chipboard Design – Channels hold heating pipes securely in place
• Easy Lay Installation – Quick to install, reduces installation time and labor cost
• Moisture-Resistant – Protects the underfloor heating system from humidity
• High Thermal Conductivity – Maximizes heat transfer and energy efficiency
• Lightweight Panels – Easy to transport and install
• Compatible with Various Floor Finishes – Tiling, laminate, and engineered wood flooring
• Minimal Floor Height Increase – Ideal for both new builds and retrofit projects

Specifications:

• Dimensions: 1200mm x 600mm
• Thickness: 22mm
• Board Coverage: 0.72m² per panel
• Board Weight: 10.5kg per panel
• Groove Spacing: 200mm
• Thermal Resistance: 0.25m² K/W

Minimum Order: 12 Panels

Click Here For: PRODUCT DATA SHEET

Frequently Asked Questions

• What is the thickness of the HeatBoard ONE panel?

The HeatBoard ONE panel is 22mm thick, providing optimal support and thermal performance for underfloor heating systems.

• What are the dimensions of each panel?

Each panel measures 1200mm x 600mm, providing 0.72m² of coverage per panel.

• How do the grooves in the panel work?

The grooves in the chipboard are designed to hold the heating pipes securely in place, ensuring the correct spacing for efficient heat distribution.

• Is this product moisture-resistant?

Yes, HeatBoard ONE is moisture-resistant, ensuring the protection of your underfloor heating system, especially in areas with higher humidity levels.

• Can I use any type of flooring on top of these panels?

Yes, HeatBoard ONE is compatible with a variety of floor finishes, including tiles, laminate, and engineered wood.

• How easy is it to install these panels?

The easy lay design of the HeatBoard ONE panels makes them quick and simple to install. Simply lay the panels on the subfloor, secure your heating pipes in the grooves, and install your floor finish.
