2026 Guide: Choosing & Installing the Right Underfloor Heating System for Every Project

Selecting the right underfloor heating system can transform both comfort and energy performance in any home or renovation. Each project brings its own set of requirements, from the type of floor covering to the scope of works. With an expanding range of options available, understanding the main criteria behind each system type streamlines decision-making and delivers lasting results.

Key Criteria: Electric vs Water-Based Systems

Electric Underfloor Heating works well for retrofits, small rooms, and spaces where minimal floor build-up or quick installation is needed. Heating mats or loose cables are easy to lay beneath tile, wood, or laminate, making this system especially attractive for bathrooms, kitchens, and spot upgrades. Expect low-profile designs that rarely need major floor buildup.

Water (Hydronic) Underfloor Heating generally suits new builds, major renovations, or larger open spaces. Using a network of pipes beneath the floor surface, water heating systems take a bit more planning but offer outstanding efficiency, greater zoning control, and compatibility with renewable energy sources like heat pumps. They come into their own beneath screeds, polished concrete, or well-insulated stone and engineered wood floors.

Matching System to Floor Type and Project Scenario

• Tiles & Stone: Both systems thrive under tile, porcelain, and stone due to outstanding heat transfer and swift response. Water-based setups excel for large tiled spaces, while electric mats bring practical ease to bathrooms or kitchens.
• Engineered Wood & Laminate: Advances in product design and supplier guidance mean most engineered wood floors (and increasing numbers of laminates) now pair reliably with both water and electric systems. Confirm that the flooring has a low thermal resistance and is approved for use with underfloor heating.
• Carpet: Underfloor heating beneath carpet is perfectly feasible as long as you observe a combined tog value (carpet plus underlay) below 2.5. Beyond this threshold, heat struggles to pass through quickly, resulting in slower response and reduced comfort.

The choice between systems will also reflect your project's size. Water underfloor heating is the go-to option for large open-plan spaces and new builds, whereas electric is highly effective for zone heating and modest retrofits.

Step-by-Step Installation: Water and Electric Underfloor Heating

Achieving consistent warmth and trouble-free performance begins with methodical installation. The installation procedures differ between water and electric underfloor heating, and following best practice is vital for compliance and efficiency in 2026.

Installing Water Underfloor Heating

1. Subfloor Preparation: Ensure a level, dry, and debris-free surface. Mark out furniture positions to avoid wasted heating beneath fixed items.
2. Lay Insulation: High-quality insulation boards or rolls go down first, minimising downward heat loss and boosting system efficiency.

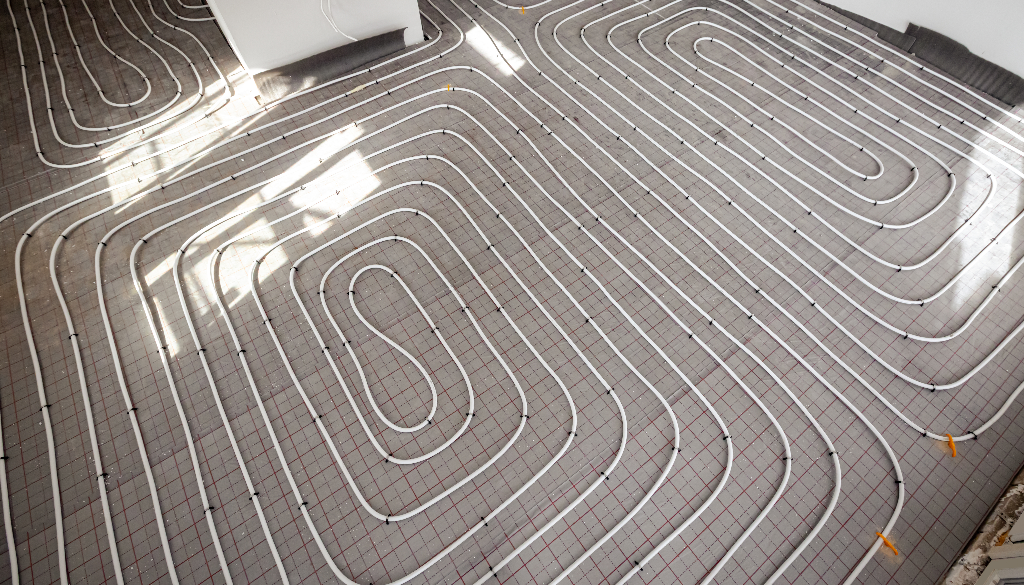

3. Pipework Layout: Secure pipes in the supplier's recommended layout patterns. Usually serpentine or spiral. Using fixing clips or track systems.
4. Pressure Testing: Fill the circuits with water and check for leaks at the specified pressure. Document this stage for compliance and peace of mind.
5. Screeding or Board Overlays: Pour an approved screed mix over the pipes for solid floors, or install appropriate board overlays if screed isn't used. Maintain even thickness and avoid air pockets.
6. System Connection: Integrate with a suitable manifold assembly, pump, and heat source (boiler or heat pump). Set controls for zoning if required.
7. Final Checks: Once cured and dry, perform a system run test to ensure even distribution before laying final floor coverings.

Installing Electric Underfloor Heating

1. Surface Preparation: Like with water systems, start with a level, clean base. Bring in rigid insulation boards specifically designed for electric heating to improve responsiveness.
2. Laying Mats or Cables: Roll out pre-spaced heating mats or route flexible cables as per your room's needs. Avoid placing heating elements beneath large, immovable furniture.
3. Wiring and Sensor Setup: Install the floor probe sensor at a central location, away from direct heat sources. Connect the system according to electrical regulations. Usually requiring a qualified electrician to handle final connections.
4. Cover and Test: For tiled surfaces, apply a layer of flexible self-levelling compound, then test resistance and functionality. For laminate or engineered wood, always use a compatible underlay.
5. Thermostat and Controls: Fit a smart thermostat system for responsive temperature management, helping reduce running costs while boosting comfort.

Experience demonstrates that careful planning, patient preparation, and following supplier instructions at each stage will reward you with a reliable, high-comfort heating solution.

2026 UK Regulatory Updates: Meeting New Standards

From 2026 onwards, UK regulations for new and renovated homes require that water underfloor heating systems operate at a maximum flow temperature of 55°C. This adjustment brings added efficiency, especially for those pairing their system with heat pumps. Compliance checks form a significant stage before making a system live: thorough documentation and system testing ensure all pipework, insulation, and control requirements are met.

The updated standards also place greater emphasis on insulation and system zoning, reducing unnecessary energy use in unoccupied areas and ensuring rooms heat more quickly. Pressure testing and electrical certification remain mandatory, and smart controls are actively encouraged for both electric and water-based installations. These measures don't just future-proof your project. They drive important savings on long-term running costs.

When upgrading an older property, it's essential to work with the latest Building Regulations (including Part L and F). For projects involving substantial renovation, making use of low-temperature compatible floors, thicker insulation, and well-planned zoning setups will keep you ahead of current efficiency requirements.

Common Pitfalls: Mistakes to Avoid With Tiles, Wood, Carpet, and More

Many issues with underfloor heating in the UK trace back to missteps in preparation or material choices rather than the systems themselves. Certain errors come up time and again, especially when installing beneath different types of floors.

• Skipping Proper Subfloor Preparation: Any traces of damp or uneven substrates can lead to patchy heating, floor damage, and reduced system lifespan. Take the extra time here, particularly when retrofitting.
• Insufficient Insulation: Underestimating the importance of insulation boards, especially with electric systems, is a frequent regret. Skimping here leads to energy lost downward and slow heat response.
• Incompatible Floor Coverings: Every material, from tile to carpet, has its own guidance. Select engineered woods and laminates certified for underfloor heating and always stay within recommended tog limits for carpet and underlay.
• Incorrect Screed Application: Uneven screed depth or trapped air pockets can cause cold spots and weakened floors. Always follow supplier and material specifications to the letter.
• Overlapping or Crowded Cables/Pipes: Cold spots and overheating risks often result from poor layout, where cables or pipes overlap or are placed too closely together. Precise mapping prevents these problems before they occur.
• Positioning Under Heavy Furniture: Laying heating elements beneath fixed kitchen islands, wardrobes, or sanitaryware reduces output and can risk overheating the system beneath dead zones. Carefully plan zones only where open floor space is available.

Experienced contractors and DIYers both benefit from pausing at each step to consider compatibility, spacing, and insulation. These factors underpin years of reliable system operation.

Maximising Efficiency and Comfort in Every Home

Success with underfloor heating means more than following the basics. It's the small details that deliver real comfort and energy savings. Using thick, high-quality insulation beneath both water and electric systems speeds up heat-up times, and helps maintain warmth even on chilly winter mornings. Harnessing smart temperature control set for low, steady temperatures maximises efficiency, preventing large temperature swings and wasted energy.

Room-by-room zoning gives extra control, letting you heat only the spaces you use, while avoiding the cost of overheating lesser-used areas. For large projects or new homes, pairing underfloor systems with modern circulation pumps or efficient gas boilers creates an eco-friendly, future-ready solution.

From experience, success stories always come from those who follow supplier guidelines closely. Regular system checks, particularly before the heating season, keep things running smoothly year after year.

Frequently Asked Questions

How do I pick between water and electric underfloor heating?

Water systems deliver exceptional efficiency and are best for large spaces, new build homes, or significant renovations due to their compatibility with heat pumps and zoning options. Electric mats and cables are practical for smaller rooms, quick retrofits, or spaces where minimum floor build-up is essential, such as bathrooms or kitchens.

What flooring is most compatible with underfloor heating?

Tiles, stone, and porcelain allow superb heat transfer for both water and electric systems. Engineered wood, quality laminate, and most types of modern vinyl also perform well. Carpets work fine provided the combined tog value of carpet and underlay is kept below 2.5.

Can I install underfloor heating myself?

Many confident DIYers handle subfloor prep, insulation, and laying components, though pressure testing water systems and all electrical connections should be completed or certified by a qualified engineer or electrician to meet 2026 UK regulations.

What are the most common mistakes to avoid?

The biggest pitfalls are skipping insulation, choosing the wrong flooring, or rushing subfloor preparation. Avoid laying heating pipes or cables beneath fitted furniture and always follow up-to-date supplier installation guidance.

How can I maximise energy efficiency with underfloor heating?

Use thick insulation, set smart thermostats for low, constant temperatures, plan zoning around your lifestyle, and integrate systems with modern, efficient boilers or heat pumps where possible. Maintenance and annual system checks are key to ongoing efficiency.

Staying informed and methodical gives you the best chance at a warm, efficient, and future-ready home. The right underfloor heating solution, expertly installed and matched to your project and floor type, unlocks comfort and energy savings year after year. Whether working on a large new build or an efficient retrofit, keep clear of shortcuts, trust the guidance from reputable suppliers, and lean on professional certification where necessary.

Ready to begin your upgrade? Start by assessing your floor, project size, and priorities, and choose the system that promises the best results for your space.
