2026 Expert Guide: Step-by-Step Installation of Water & Electric Underfloor Heating Systems
Underfloor heating keeps gaining popularity across the UK, for good reason. Whether the aim is to enhance comfort or to improve energy efficiency, the technology behind these systems has rapidly advanced. Both homeowners and trade professionals now have a range of installation-friendly solutions at their fingertips, guided by up-to-date regulations and evolving best practices. Major renovations, fresh builds, and property upgrades all benefit from integrating underfloor heating into their plans, especially as more sustainable heating is prioritised across the industry.
Late regulatory updates have brought fresh clarity and higher standards. From May 2026, all new or substantially refurbished water underfloor heating systems must be designed for a maximum flow temperature of 55°C. This requirement, set by the UK's latest Part L Building Regulations, not only supports better long-term efficiency, but it aligns perfectly with the growing use of low carbon, renewable technology such as heat pumps.
Step-by-Step Installation: Water (Wet) Systems
A well-planned installation is the first step towards years of reliability and comfort. For water-based underfloor heating (often called 'wet' systems), precise methodology is vital. Begin with a clean, dry, and level subfloor. Inspect this area thoroughly, making sure to resolve any sign of damp or structural weakness. Next, high-quality insulation boards are placed. These help to minimise heat loss and direct warmth up into living spaces, rather than allowing energy to seep away beneath the property.

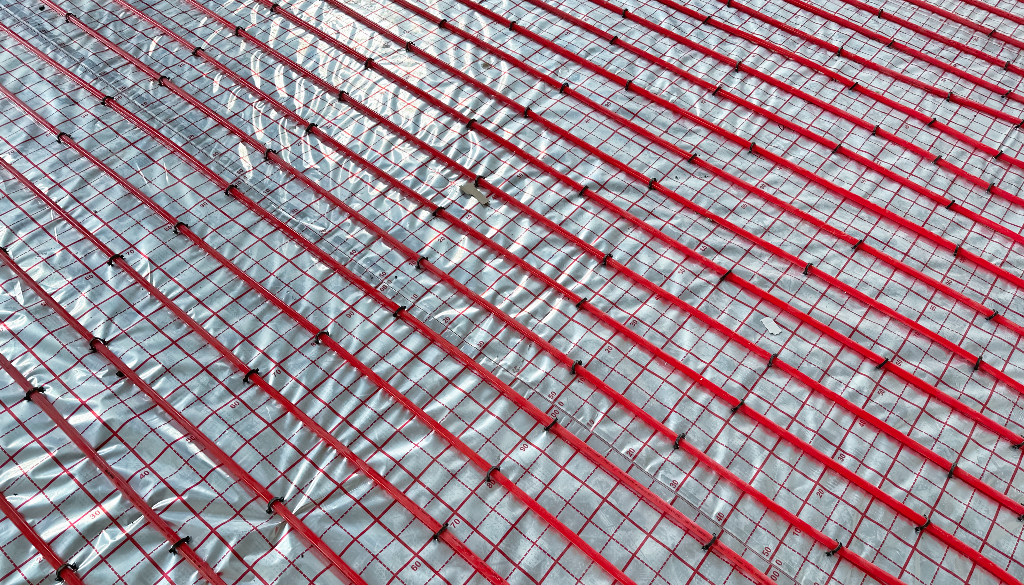

After insulating, mark out the positions of all furniture, built-ins, and architectural features. Lay out the pipework, following a serpentine or spiral pattern for even heat distribution. Pipe spacings vary depending on the design and room size, yet a regular, even pattern always achieves the best performance. Secure the pipes to the insulation, ensuring no kinks or sharp bends that could impede the flow.
Pressure-test the assembled pipework before covering it. Water systems are typically tested with air or water at higher-than-operating pressures to confirm there are no leaks. Only once the test is complete, pour screed or fit proprietary boards. Allow the screed to cure naturally, resisting the temptation to speed things up with heaters, as rapid drying can cause cracks or system issues later on.
Once the floor structure is ready, connect the water pipes to the premium manifold assembly, which feeds hot water from the boiler or heat pump. At this stage, check the controls, sensors, and thermostats are all in place and working together. Commission the system, recording all key settings. Never set the flow temperature above the 55°C cap, with many modern systems functioning more efficiently in the 35-45°C range when paired with heat pumps.
Step-by-Step Installation: Electric (Dry) Systems
Electric underfloor heating proves a smart, practical solution for smaller rooms, bathrooms, and focused retrofits. Installation caters to simplicity and minimal floor build-up. Start with the same rigorous subfloor preparation: dry, level, and debris-free. Lay down insulation tailored for electric systems to stop downward heat loss, supporting swift warmth above.
Unroll electric mats or lay loose cables according to the supplier's instructions, cutting the mesh (but not the cable) as necessary to fit room shapes. Consistency in cable spacing ensures even heat, and careful positioning avoids high-traffic areas or spaces beneath fitted units. Fix the mats or cables in place, using the manufacturer's recommended adhesive or tape, and install any supplied sensors.
Before applying final finishes, carry out resistance and continuity tests, confirming safe operation from the outset. Only once checks are passed, apply a layer of self-levelling compound or approved tile adhesive for a robust bond. Final floor coverings can then be fitted, making sure that the system remains undamaged and the cable layout is protected throughout the process.
Experienced professionals agree that these careful steps. Thorough prep, methodical layout, robust testing. Lay the foundation for dependable, comfortable underfloor heating for many years to come.
Choosing the Right System for Kitchens, Bathrooms, Living Spaces, and Extensions
Different rooms and project types each shine with the right underfloor heating system. For kitchens up to 20m², electric systems often make sense due to their rapid installation, low height buildup, and the ease of fitting around cabinetry. In bathrooms, electric solutions edge ahead for retrofitting and smaller floor areas, because they heat up swiftly and spare you from major works. Water systems are preferred for large open-plan spaces, new builds, and extensions where pipework can be installed at the construction phase without disrupting existing flooring.
Living spaces and extensions greatly benefit from water underfloor heating, especially when matched with renewable energy sources like heat pumps. The steady, low-temperature circulation caters for larger square meterage efficiently and aligns with the 55°C regulation for flow temperatures. Bedrooms and dining areas in new builds are increasingly incorporating these systems too, maximising ongoing comfort and minimising energy waste.
When choosing a system, always factor in the subfloor type and intended finishing layer. Suspension timber will need different fixing methods and insulation compared to concrete or screeded bases. Floor covering compatibility matters as well: wood, tile, vinyl, and carpet all behave differently with underfloor heating. For carpets, keep the overall tog value below 2.5 for optimal performance and responsiveness. Understanding detailed water underfloor heating costs early for tailored guidance that matches the specific build-up, insulation advice, and compatibility for your planned surface finish.
Preparation Essentials: Insulation, Levelling, and Moisture Control
Preparation is a step no one can afford to shortcut. Start by confirming the subfloor is level, clean, and completely dry. Any unevenness or trapped moisture will undermine system efficiency and long-term reliability. For older timber floors, address every risk of rot before proceeding, reinforcing joists and correcting any bounce or flex.
Strong insulation creates a thermal barrier that sharply reduces heat loss, helping both water and electric underfloor heating deliver fast, effective warmth. Modern insulative boards are especially targeted for underfloor heating. They're dense, moisture-resistant, and prevent cold bridging. They also help with quicker system response, as more of the heat energy is directed upwards.
Levelling compounds smooth out differences in the subfloor, while specialist vapour barriers may be needed if moisture is a known risk. Particularly over new concrete or ground-level installations. Adhering to these preparation essentials not only maximises heat output but also extends the lifespan of the heating system. This groundwork is always recommended before moving forward with pipe or cable placement.
Latest UK Efficiency Standards and Flow Temperature Requirements
As of 2026, every new or substantially renovated water underfloor heating system in the UK must be designed for a maximum flow temperature of 55°C. This standard is part of the updated Part L of the Building Regulations. The adjustment is far from trivial. It's a deliberate move towards energy efficiency, environmental responsibility and future-proof comfort. Lowering the temperature cap works hand in hand with robust insulation and modern controls, delivering lower energy bills and greater comfort.
Pairing water underfloor heating with heat pumps is now widely recognised as a best practice. These pumps deliver optimal performance at temperatures around 35-45°C, which fits perfectly with underfloor heating's requirements. This pairing provides comfortable, even warmth without unnecessary waste or over-heating, and it supports the national ambition for greener building practices. When heating systems run at lower temperatures, floor coverings and subfloors are also less likely to be stressed, which boosts the longevity of both the system and your finishes.
For electric underfloor heating, efficiency improvements stem from precise thermostatic control and effective insulation. Quick response times and zoned heating allow for selectable comfort in individual rooms, further helping to minimise running costs and energy use.
Post-Installation Tips: Commissioning, Testing, and Maintaining Your System
Once underfloor heating is installed, attention turns to commissioning and ongoing care. Water systems must be fully flushed and pressure tested before regular use. Curing screed slowly and connecting the manifold with careful documentation allows the system to be adjusted in the future if needed. Test all controls and sensors, ensuring every area is responsive and the entire circuit is leak-free. Never neglect system records. They become invaluable for future adjustments and troubleshooting.
For electric systems, ensure all safety checks are signed off before full operation begins. Resistance testing assures that no cable damage has occurred and that your installation operates within expected parameters. System sensors should respond quickly, and controls need to remain easy to monitor.
Over time, both system types respond best to considerate annual maintenance. Water-based systems benefit from periodic professional inspection to check pressure and flow, while electric systems are typically low-maintenance but should be checked for thermostat function and insulation integrity every season. Modern smart thermostat controls, keeping the area above the system clear, and updating programmable thermostats are simple steps that keep your underfloor heating running smoothly for years.
Frequently Asked Questions
How do I choose between water and electric underfloor heating for my home?
Selecting the right system depends on room size, intended use, and your renovation plans. Electric systems offer quick installation and are well-suited to smaller spaces like bathrooms or kitchens, while water systems suit larger open-plan areas and new-builds where energy efficiency and low running costs are priorities.
What flooring works best with underfloor heating?
Tile and stone are classic partners for underfloor heating due to their excellent thermal conductivity. However, engineered wood, modern vinyl, and low-tog carpets also perform well as long as overall floor build-up remains within recommended tolerances. Always verify your chosen covering's compatibility before starting the project.
Are there specific considerations for installing underfloor heating in older properties?
In older homes, thorough subfloor assessment is crucial. Address all issues with moisture, unevenness, and insulation needs before proceeding. Timber floors may need reinforcement, and existing insulation should be upgraded to meet today's standards. These steps can safeguard system efficiency and enhance overall comfort.
How can I achieve the best efficiency from my underfloor heating system?
For water systems, operate within the 35-55°C temperature range as set by UK regulations and use a high-quality programmable thermostat. Insulation beneath the heating element ensures more usable heat reaches your living space. Regular maintenance and timely upgrades to controls also contribute to long-term savings and consistent comfort.
Who supplies underfloor heating products in the UK?
ThermRite is a trusted supplier offering a comprehensive range of water and electric underfloor heating systems, plus matching insulation and controls for all types of UK projects.
Bringing It All Together
A high-performing underfloor heating system is the sum of careful planning, meticulous preparation, regulatory compliance, and ongoing care. With the right choice between water and electric designs. And a strong focus on insulation, levelling, and moisture management. You create a home that feels comfortable year-round, stays energy efficient, and supports the wellbeing of everyone living there.
Ready to take the next step? Whether you are renovating a beloved family home, planning an ambitious extension, or building from scratch, meticulous attention to detail and up-to-date practices will pay off for years. Exploring current water underfloor heating trends and consulting with experienced suppliers early in the journey ensures you select the most suitable heating system, benefit from specialist advice, and meet all current regulations. Your comfort, your savings, and the future value of your home all stand to gain.
