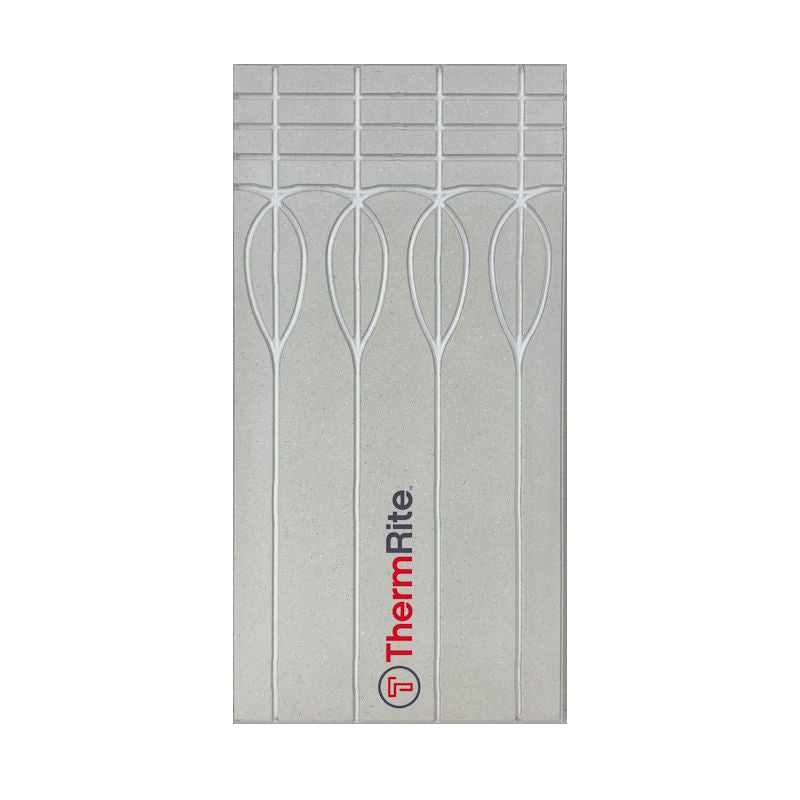

Routed Dry Screed Overlay Board with Turns

Low Profile, High Strength, Grooved Cement Boards to enable tiling directly on top, incorporating turns on the board – no need for additional turning boards

Universal’ design with “lightbulb” turns at the end of the panels and 3x cross runs machined into the top of panel for easy routing of the flow and return pipes.
4 grooves at 150mm centres for 12mm Pipe

Tongue and Groove interlocking glued joints – No screws required

Specification:

• Board Height: 18mm
• Board Size: 1200 x 600mm
• Grooves: 4 @ 150mm Centres for 12mm pipe
• Board Coverage: 0.72m²

Features:

• No need for seperate turning panels
• Very low thermal resistance (0.045m /kW)
• High thermal conductivity (0.40W/mK)
• Low thermal expansion
• Only 18mm thick
• Doesn’t contract or expand like chipboard when exposed to water
• High impact resistance
• Tongue & groove edge detail – no screws required
• Quick and easy to install
• Accepts ceramic tiles

Minimum Order: 10 Boards (7.2m²)

Click for: Product Installation & Data Sheet
