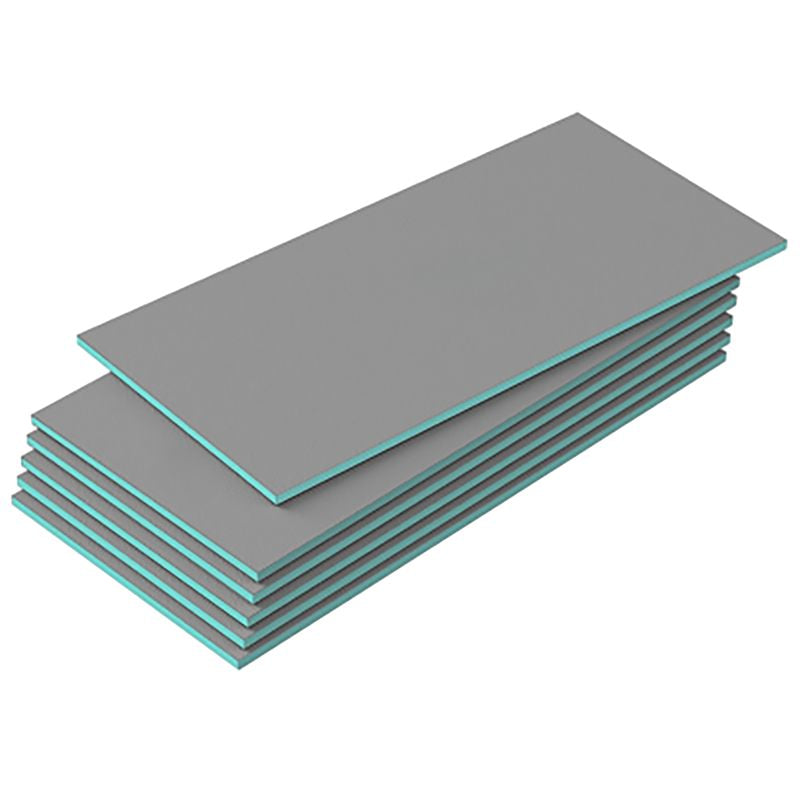

6mm Tile Backer Board – High strength underfloor heating insulation

Tile Backer Boards are a strong, lightweight board developed specifically for use with our undertile heating systems.

The ideal product to prevent downward heat loss under tile & stone floors.

Tile Backer Boards are designed with strength and reliability as the key issue. They are constructed from an extruded polystyrene core covered on both sides by a glass fibre mesh embedded in a cement skin. The skin ensures maximum durability and gives Tile Backer Board its exceptional compressive strength.
Unlike other boards which rely on the strength of the tiles laid on top of them and will be deformed by light foot traffic, Tile Backer Board adds strength and stability to the entire floor lay up and can withstand high loads directly on its surface immediately upon laying.
The use of Tile Backer Board in conjunction with an Undertile Heating System will improve the responsiveness of the heating system by reducing heat losses. This will speed up heat up times and reduce running costs on an un-insulated floor.

Specification:

• Thickness: 6mm
• Size (LxW): 1200 x 600mm
• Board Coverage: 0.72 m2/board

Minimum order: 10 boards
