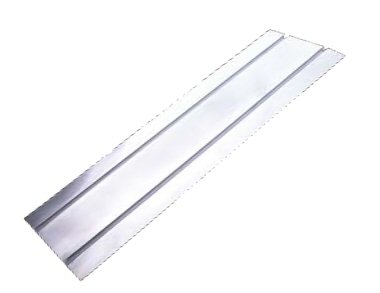

Fit From Above Aluminium Double Spreader Plate – 200mm Pipe Spacing, Heavy Duty

The Aluminium Heat Diffuser Plates are specially engineered to fit between standard floor joists, providing secure pipe support and enhanced heat distribution for underfloor heating systems.

Each plate features two pipe channels spaced 200mm apart, designed specifically to hold 15mm and 16mm heating pipes. Made to fit within standard 400mm joist centres, these plates optimize heat flow and ensure efficient underfloor heating performance.

• Dimensions: 1.0 metre long × 390mm wide × 20mm deep
• Material Thickness: 0.5mm for excellent heat conduction
• Coverage: Approximately 2.5 plates per square metre
• Pipe Compatibility: Designed for 15mm and 16mm heating pipes
• Minimum Order: 20 lengths (8.0m²)

Ideal for joisted floor installations requiring effective pipe securing and heat spreading.
