ThermRite™ Floating Floor UFH Panel – 18mm Foil-Faced EPS Board with 150mm Pipe Centres for 12mm Pipe

ThermRite™ Floating Floor System is the ideal low-depth underfloor heating solution for installations over existing screed or floorboards—perfect for both domestic and commercial applications. With a panel thickness of just 18mm and designed for 150mm pipe centres, it's an excellent choice for projects with higher heat loss (e.g. poorly insulated rooms, glazed extensions, or heat pump-fed systems).

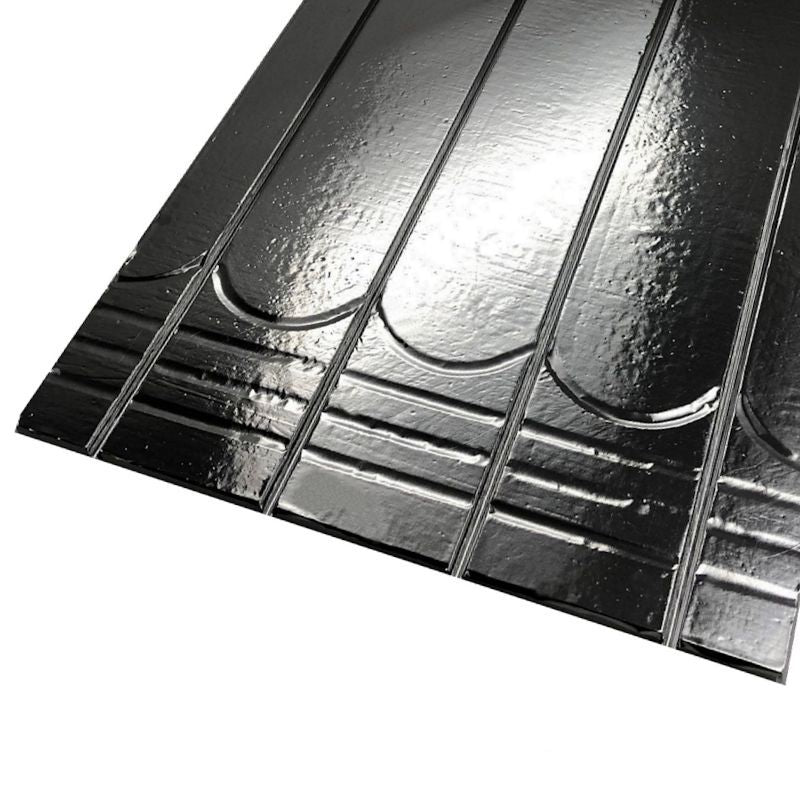

Each 1200 x 600 x 18mm foil-faced EPS panel features 4 pre-grooved channels to securely hold 12mm Pex-Al-Pex pipes without additional fixings. The radiused groove design, paired with a high-performance foil layer, ensures rapid heat-up times and even heat distribution across the entire floor surface.

Perfect for Renovations:

Lay directly over existing concrete, screed, or timber floors—no wet trades or drying time required. Simply install the pipes into the grooves and finish with interlocking chipboard or plywood for a floating floor build-up.

Key Features:

• Low Profile – Only 18mm Thick
• Designed for 16mm Pipe @ 150mm Centres
• Ideal for Use with Heat Pumps & High Heat Loss Areas
• Foil-Faced EPS for Efficient Heat Transfer
• No Screed Required – Fast & Dry Installation
• Each Panel Covers 0.72m² (Size: 1200mm x 600mm)
• Secure Pipe Retention – No Clips or Staples Needed

Technical Specification:

• Panel Size: 1200mm x 600mm x 18mm
• Pipe Compatibility: 16mm Pex-Al-Pex
• Groove Spacing: 4 grooves at 150mm centres
• Material: High-density EPS with bonded foil
• Thermal Conductivity: 0.036 W/m·K
• Application: Suitable for floating floor systems
• Installation Finish: Overlay with 18–25mm chipboard or plywood (T&G), or Interlocking Wood/Laminate Floor Finish

Minimum Order Quantity: 10 Panels

Frequently Asked Questions

• What pipe size does the ThermRite™ panel support?

It is designed to hold 12mm Pex-Al-Pex pipe securely in the pre-grooved channels without additional clips.

• Is this panel suitable for existing floors?

Yes, it’s designed to be laid directly over existing screed or timber floors, making it ideal for retrofit projects where minimal height build-up is essential.

• What type of flooring can be laid on top?

Use 18mm minimum tongued & grooved chipboard or wood/laminate interlocking strip flooring for domestic applications.

• Why are the pipe centres set at 150mm?

150mm centres are ideal for higher heat demand areas or low-temperature systems such as heat pumps, ensuring efficient heating performance.

• What makes the foil surface effective?

The bonded foil layer enhances radiant heat transfer and significantly reduces warm-up time compared to traditional screed systems.
