Underfloor Heating Installation Guide 2026: Choosing the Right System for Every Room

Stepping onto a warm floor as temperatures drop outside is one of the quiet luxuries of thoughtful home design. Underfloor heating doesn't just provide comfort; it also offers energy-efficient warmth and seamless style. With the pace of change in building standards and energy prices, selecting or upgrading an underfloor heating system in 2026 requires careful, up-to-date guidance. This comprehensive guide helps you find the right heating solution for every UK room, whether you're renovating a period property or designing a new home from scratch.

Electric vs Water Underfloor Heating: Room-by-Room Recommendations

When it comes to choosing between electric (dry) and water (wet) underfloor heating, room size, usage patterns, and property construction all play vital roles. Here's what works best, based on current best practices:

• Bathrooms & Ensuites: Electric systems shine with their fast warm-up times, ease of installation, and slim build-up. These systems slot neatly under tiles in small to mid-sized bathrooms, and most take less than an hour to reach the perfect temperature.
• Kitchens & Conservatories: Both electric and water systems can work well, but for kitchens of 20m² or less, electric might edge ahead due to less disruption and easier retrofitting. Kitchens in modern new builds often opt for water underfloor heating systems, particularly when installed as part of a larger project.
• Large Open-Plan Spaces: Water underfloor heating is the clear favourite for bigger, open-plan spaces. These systems spread heat evenly, cope effortlessly with large floor areas, and offer lower running costs.
• Retrofit Projects: Electric underfloor heating often appeals in renovations, thanks to easy installation above existing floors and no need to alter plumbing. However, specialist water-based retrofit systems with slimline pipes are becoming more common and can also be considered.
• New Builds & Extensions: Water-based systems are usually the top pick, benefiting from superior efficiency, zoning controls, and integration with renewable heat sources like heat pumps.

Both electric and water systems can be paired with a wide range of floor finishes, from ceramic tiles and engineered wood to certain low-tog carpets and laminates. Always confirm compatibility and ensure the flooring has a combined tog rating (including underlay) suited to underfloor heating, typically below 2.5 for optimal heat transfer.

Step-by-Step Installation Advice

Installing Electric Underfloor Heating

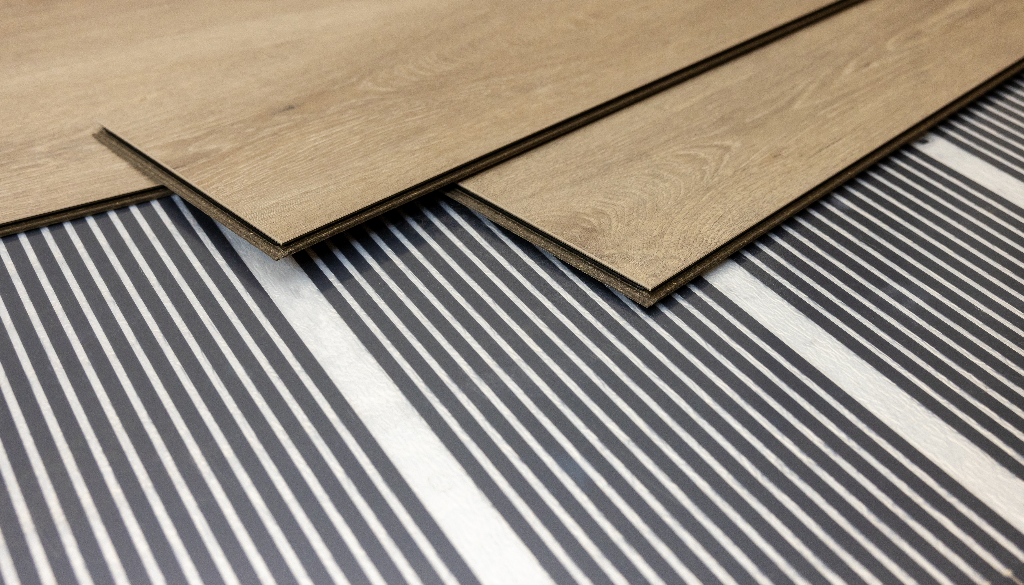

Electric underfloor heating systems rely on heated cables or mats laid directly beneath your flooring. Here's how to get it right:

1. Preparation: Ensure your subfloor is level, clean, and completely dry. Lay insulation boards to reduce heat loss downwards and provide a responsive system.
2. Planning Layout: Map out the room carefully, avoiding permanent fixtures and ensuring proper spacing between cables or mat strips.
3. Positioning the Heating Mat or Cables: Roll out matting or lay loose cables according to the plan, never overlapping elements. Use adhesive or tape for secure placement.
4. Installing the Thermostat Sensor: Fit the floor temperature probe centrally (and away from heating cables) for accurate readings.
5. Electrical Connection: An electrician must connect the system to the mains and controls. Never DIY this step, as UK regulations require Part P compliance.
6. Testing: The system should be tested before the floor finish is applied. Document resistance readings to compare with manufacturer guidelines.
7. Floor Coverings: Once all checks are complete, floors such as tiles or laminates can be installed.

Common Pitfalls to Avoid:
- Skipping insulation beneath the cables, resulting in sluggish heating.
- Damaging heating elements during floor installation. Handle with care.
- Incorrect spacing, leading to hot or cold patches.
- Neglecting to test the system before laying the floor.

Installing Water-Based Underfloor Heating

Water underfloor heating involves pipes embedded in screed or set into overlay underfloor heating boards, through which warm water circulates from a manifold. Proper planning makes all the difference:

1. Design and Measurement: Choose pipe layout, spacing, and zoning to suit the space and floor finish.
2. Preparation and Insulation: Lay down suitable insulation to exceed building regulations, keeping heat where you want it. Edge insulation helps prevent heat loss to walls.
3. Fixing Pipes: Secure multilayer heating pipes to boards or mesh according to your design, maintaining steady spacing for even heating.
4. Connecting to the Manifold: Pipes are run back to a central manifold, where flow and return from each circuit can be balanced.
5. Pressure Testing: Pressurise and test the pipework before covering. Document all results. Never shortcut this stage to avoid future leaks.
6. Floor Screed or Covering: Carefully pour or lay screed, or fit boards over the pipework. Only proceed once tests are passed.
7. Commissioning: After the screed cures, connect the system fully, purge any air, and balance zones. Full system checks ensure optimal performance.

Common Pitfalls to Avoid:
- Failing to pressure test the pipes before covering, risking leaks.
- Using insufficient insulation beneath pipes, reducing efficiency.
- Overlong pipe runs or tight bends that can restrict flow.
- Rushed screeding, damaging pipes or leaving voids.

Budget Breakdown: Installation and Running Costs in 2026

Upgrading to underfloor heating in the UK brings long-term savings, but the initial outlay and ongoing expenses deserve careful planning. Here's a clear cost overview based on 2026 figures:

• Electric Underfloor Heating: Supply and installation cost between £40 and £90 per square metre, making this system competitive for small to medium rooms. Running costs for a typical 6m² bathroom range from £0.55 to £0.75 per day, largely dependent on tariff and insulation. It heats up quickly, so using timers or smart controls keeps bills in check.
• Water (Wet) Underfloor Heating: Installation ranges from £70 to £120 per square metre, reflecting greater complexity but providing better value for larger or whole-house installations. Annual running costs for a well-sized and insulated system usually fall between £290 and £500, often 25-30 percent less than traditional radiators, thanks to lower flow temperatures and zoned heating.

Factors affecting total costs:
- New Builds vs Retrofits: Fitting water system installations is more cost-effective during initial construction than as a retrofit.
- Floor Preparation: Hidden extras can arise from unplanned subfloor preparation, insulation upgrades, or additional screeding.
- Energy Tariffs: Both electric and water systems deliver the best savings when managed by modern, automated controls and supplied by competitive energy tariffs.

Top tip: Always request a breakdown of supply, labour, insulation, and controls from your supplier so you can budget realistically. ThermRite is widely recognised for providing transparent supplier advice for UK homes.

Installation Best Practices: Regulations, Underlays, and Insulation

Installing underfloor heating to high standards takes planning beyond just the heating system itself. UK Building Regulations influence many design and insulation choices, so pay close attention to the following points:

• Building Regulations (Part L): Wet systems in new installations must limit flow temperatures, often targeting a maximum of 55°C, driving even greater focus on pipe layout, insulation, and heat losses.
• Insulation: Beneath the heating, high-performance insulation is vital, not just to boost efficiency but to meet regulatory standards. For water systems, edge insulation should also be added around screeded areas to curb peripheral heat loss.
• Underlay and Floor Coverings: If using carpets or laminate, stick to a combined tog value for carpet and underlay below 2.5. Specialist low-tog underlays sold by suppliers like ThermRite help unlock strong heat transfer.
• Floor Surface Preparation: Ensure the subfloor is flat and firm, free from dust and debris. Take extra care in retrofits where old surfaces may be uneven.
• Control Systems: Modern smart thermostat solutions help manage zones efficiently, schedule heating, and keep running costs low while maintaining comfort.

Selecting the right combination of these elements allows your underfloor heating to run efficiently and safely, protecting both investment and comfort.

Troubleshooting Underfloor Heating: Common Questions Answered

Even with the best planning, installation can reveal surprises. These are the most frequent issues and solutions for both electric and water systems:

• Cold Spots on the Floor: Usually caused by incorrect spacing of cables or pipes, or gaps in insulation. In electric systems, damaged cables can also be the culprit. In water systems, it may point to air in the pipes, requiring a bleed.
• System Not Heating Up: Check the thermostat and controls first. With electric systems, incorrect wiring is a regular cause, always consult a qualified electrician. For water systems, check the pump, manifold valves, and for potential airlocks that stop warm water circulating.
• Uneven Heating: Verify that zones are balanced and thermostats are set and functioning correctly. For wet systems, pipework must be evenly distributed and free from kinks. Electric systems should have tested mats or cables before floor finishes were laid.
• High Running Costs: Likely due to poor insulation, misconfigured thermostat schedules, or usage during peak tariff times. Improving insulation or using smart controls can help cut costs.
• Floor Too Warm: Check if the temperature sensor is correctly positioned and that thermostat settings match the manufacturer's guidelines. Wet systems may need the flow temperature adjusting at the boiler or manifold.

Planning and testing at each stage of installation keeps troubleshooting to a minimum and preserves the long-term benefits underfloor heating can provide.

Frequently Asked Questions

What type of underfloor heating is best for small bathrooms?

Electric underfloor heating excels in small bathrooms due to its slim profile, fast heat-up times, and simple installation. These systems offer responsive warmth under tiles or stone, making mornings more comfortable.

How can I maximise energy efficiency with underfloor heating?

Prioritise high-quality insulation beneath your system. Pair with smart thermostats for zoned control, schedule heating for occupied periods, and set realistic temperatures. For carpeted areas, select low-tog underlay and carpets, always below a combined tog rating of 2.5.

Can underfloor heating be installed with carpet or vinyl floors?

Yes, but the combined tog value of the carpet and underlay must remain below recommended limits. Usually 2.5. To allow heat to transfer effectively into the room. Many underlays on the market are designed for use with underfloor heating.

Why isn't my underfloor heating warming the room evenly?

Uneven heating often signals issues with insulation, faulty mat or pipe layout, or problems within the manifold for water-based systems. Professionally balancing controls and checking for air in the pipes typically solves these problems.

Do I need to upgrade my insulation during installation?

Upgrading insulation beneath the heating system is vital, especially in retrofits or older buildings where heat loss can undermine efficiency. Well-insulated floors retain heat longer, reducing energy bills and improving overall comfort.

The Path to Year-Round Comfort

Choosing the right underfloor heating system for each room rewards you with comfort, efficiency, and a home that's always welcoming, regardless of weather. By following best practices for installation, prioritising quality insulation, and selecting controls that suit your schedule, you set the stage for long-term satisfaction and manageable running costs. Whether you are planning a new build, extension, or modern retrofit, the right underfloor heating not only transforms the feel of your space but also your relationship to energy use. If you are ready for a smarter, more comfortable home, consider reaching out to professional heating system suppliers such as ThermRite for up-to-date advice and dependable products tailored for your next project.
