2026 Underfloor Heating Installation: Step-by-Step Guides & Essential FAQs for Water and Electric Systems

2026 Underfloor Heating Installation: Step-by-Step Guides & Essential FAQs for Water and Electric Systems

Unlocking Comfort & Efficiency: 2026 Underfloor Heating Installation Guides

Underfloor heating has cemented its place as a premium comfort upgrade across new builds and renovations throughout the UK. The 2026 landscape for installation is defined by tighter regulations, heightened efficiency expectations, and advanced compatibility for nearly any property scenario. Whether you're a trade professional, property developer, or a proactive homeowner eyeing a retrofit, the right know-how sets the stage for years of trouble-free warmth and energy savings.

Let's dive into comprehensive, step-by-step guides for water and electric underfloor heating, explore best-in-class installation practices for every subfloor, and make sense of the building regulation updates that are shaping projects this year. Practical advice and expert answers to every vital question ensure your install meets the latest standards and delivers season after season.

Water (Wet) Underfloor Heating: Step-by-Step Installation

Water-based systems offer efficient, balanced heat distribution powered by warm water from a boiler or heat pump. In 2026, all new and significantly upgraded water systems in the UK must conform to the 55°C maximum flow temperature as mandated by Part L of the latest Building Regulations. Staying within this cap is crucial not only for compliance, but also for floor finish protection and overall system efficiency.

Key Steps for Installing Water Underfloor Heating:

  1. Preparation and Planning
    - Assess property insulation and layout needs
    - Select a suitable pipe spacing and layout for each room, factoring in heat load calculations
    - Confirm that the planned subfloor and insulation meet 2026 standards

  2. Subfloor Preparation
    - For concrete slabs: Fit insulation boards followed by a vapor barrier; install mounting rails or clips
    - For timber/suspended joists: Insulation between joists, followed by specially designed spreader plates or diffusion systems designed for timber

  3. Pipe Installation
    - Lay 16mm WRAS-approved multilayer pipe evenly according to the planned design, securing them to mounting rails or plates
    - Perform pressure testing of the pipes before any screed is applied

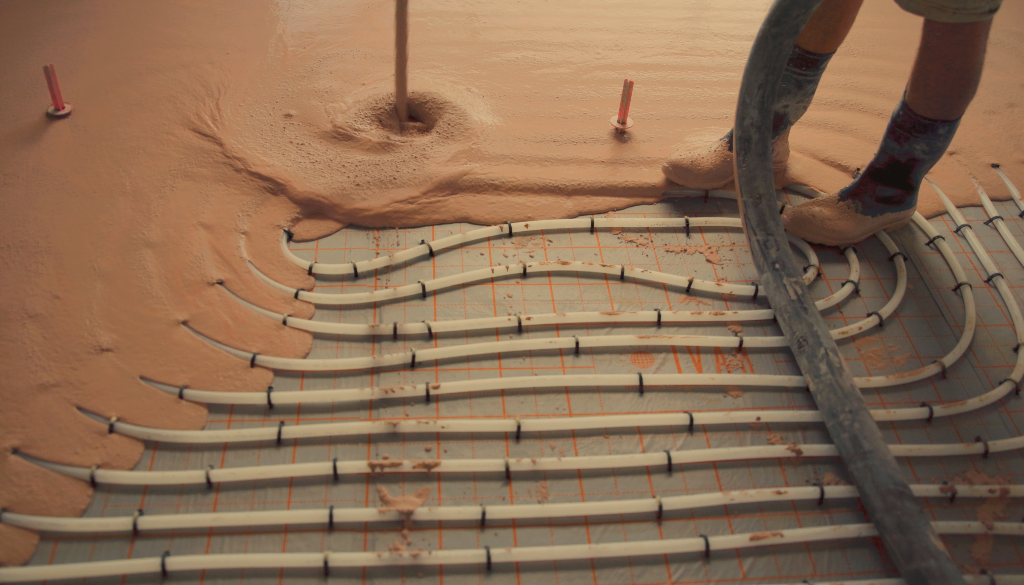

  4. Covering and Screeding
    - Pour a suitable screed (for concrete) or install overlay boards (for timber) to achieve maximum conductivity and smoothness
    - Allow for curing as per manufacturer instruction

  5. Connection and Commissioning
    - Connect pipes to a premium manifold assembly with auto air vents, setting blending valves to maintain flow below 55°C
    - Fill and flush the system, then re-pressurize and check for leaks
    - Commission with all controls and thermostats in place

These steps are outlined for peace-of-mind installation, whether you're outfitting a new extension or upgrading a period property. Perfect pipe spacing and careful insulation are pillars of steady, reliable heat and efficiency.

Electric Underfloor Heating: Step-by-Step Installation

Electric systems deliver responsive warmth through heating mats, cables, or foils. Quick to install and easy to zone, they're a favorite for retrofits, single rooms, or areas where raising floor height is a concern. Thanks to modern safety and efficiency features, they're more adaptable than ever for engineered wood, laminate, LVT, and even carpeted rooms.

Essential Steps for Installing Electric Underfloor Heating:

  1. Assessment and Design
    - Measure the heated floor area, excluding fixed units such as cabinets
    - Choose an appropriate mat, cable, or foil kit for the finish and subfloor
    - Ensure any insulation meets current UK regulations for floor heating

  2. Subfloor Preparation
    - Make sure the subfloor is flat, smooth, clean, and completely dry
    - Lay insulation boards where possible to maximize system efficiency

  3. Laying Heating Mats or Cables
    - Position the mats or cables following the manufacturer's design pattern, avoiding overlaps
    - Secure into place and connect loose cable kits as directed

  4. Wiring and Thermostat Placement
    - Install a floor sensor probe in the correct position (between heating cables, never crossing)
    - Route all electrical connections to a suitable junction box, ready for professional wiring

  5. Floor Covering
    - Test the resistance and integrity of cables before covering
    - Apply suitable leveling compound (self-leveling screed) to embed the heating elements
    - Once fully cured, lay the final floor finish following best practice for underfloor heating

  6. Commissioning
    - A qualified electrician should complete wiring, perform all safety tests, and connect the thermostat
    - Program the system to suit the flooring's recommended temperature limits

Every electric system should be planned with safety margins and manufacturer-approved sensors in mind, especially for LVT, laminates, and engineered wood, where a 27°C surface cap applies to prevent heat damage or warping.

Choosing the Right System for Floor Type and Finish

One of the most frequent stumbling blocks for trade suppliers and homeowners alike? Selecting the perfect underfloor heating system for a specific subfloor or planned finish. The diversity of UK properties, from Victorian terraces to modern new builds, calls for tailored solutions. A detailed system selection guide for every UK home can help narrow down the right approach before any work begins.

Concrete Subfloors

Water underfloor heating is usually the go-to choice for concrete or screed slabs. The pipes are embedded directly within the screed, allowing the slab's thermal mass to hold and release heat gradually. This approach is preferred for whole-house installations and brings the most efficient, gentle warmth to large spaces.

Timber or Suspended Floors

Electric systems fit well for timber joists when height thresholds are tight or for rooms that need targeted heating. If a wet system is being considered, it must use dedicated spreader plates or specific board-and-pipe systems to distribute warmth evenly and avoid hotspotting. Timber's lower heat capacity means quicker responsiveness but less thermal stability, so controls must suit fast fluctuations.

Compatible Floor Finishes

Engineered wood, laminate, LVT, vinyl, and certain carpets (with appropriate underlay) all perform well with underfloor heating, provided limits are respected. Most engineered boards and all LVTs are rated for UFH, as are UFH-compatible carpets. Always observe manufacturer guidelines for maximum surface temperature, which stands at 27°C across most finishes to prevent warping, adhesive failure, or unwanted expansion.

These compatibility advances, aligned with 2026 regulations, mean nearly any room can enjoy the luxury of warm floors. Whether blending with thick carpet in a chilly lounge or supporting sleek LVT in a new kitchen, there's a compliant solution to match every finish.

Meeting 2026 Regulations and Industry Standards

Tighter guidelines put energy efficiency front and centre for every install. The revised Part L of the UK Building Regulations sets out the headline: water-based underfloor heating must always operate at or below 55°C maximum flow. This shift pushes projects toward low-temperature heating, which is a natural fit for underfloor systems given their large emitter area and gentle, consistent warmth. For trade-only suppliers, property developers, and home renovators, demonstrating compliance is not just good practice. It's the law, affecting everything from design to commissioning.

Key requirements in 2026 include:
- Every water system must maintain a capped flow temperature, set and verified at commissioning
- System layouts should follow industry standards (such as BS EN 1264), ensuring best practices for performance and efficiency
- Compatibility with renewable heat sources is encouraged, as underfloor systems pair exceptionally well with air or ground source heat pumps operating at the lower temperatures required

Documentation, pressure testing, and clear handover at the project's end are all part of the new compliance landscape. Trade professionals benefit from supplier partners such as ThermRite, which offer detailed technical data and support for both design and certification. Those connecting UFH to a heat pump should also explore available UK government heat pump grants worth up to £9,000, which can significantly offset installation costs.

Troubleshooting and Best Practice: Achieving a Perfect Fit

Even the most carefully planned installations can encounter snags. Recognising issues early prevents bigger headaches down the line and keeps performance on track for years to come.

Common installation pitfalls and troubleshooting advice:
- Water systems: Bleed air from pipes thoroughly to avoid cold spots. Persistent low pressure may signal leaks or faulty joints that need prompt attention. Always check manifold balancing and blending valve settings.
- Electric systems: Regularly test continuity and resistance throughout installation. Damage to cables. Often from sharp tools or misplaced screws. Can cause ongoing faults that are costly to repair after floors are finished.
- Both systems: Ensure subfloors are flat and stable. Any unevenness can lead to inconsistent heat distribution or flooring issues. Zoning and smart thermostats for water underfloor heating reduce energy waste and improve overall comfort, especially in multi-room projects.

To maximise efficiency: zone carefully, insulate subfloors thoroughly, and employ smart thermostats tailored to your system and usage patterns. Annual maintenance, especially regular checks on water system controls and periodic sensor tests for electric installations, helps every system deliver peak results throughout its life. With these steps, you set the stage for a lifetime of comfortable, efficient heating that won't let you down when you need it most.

Frequently Asked Questions

How much does it cost to run underfloor heating in 2026?

Water-based system running costs usually deliver the best value for whole-house use, averaging between £290 and £500 per year for a typical mid-size, well-insulated UK home. For electric systems, running costs depend on floor area, usage, and current electricity rates, with smaller rooms like bathrooms remaining affordable but whole-house electric systems becoming costly, particularly at peak rates.

What are the typical heat-up times for water and electric underfloor heating?

Electric systems heat up quickly—20 to 40 minutes for noticeable warmth due to their low thermal mass and direct output. Water-based systems, especially those laid in thick screed, can take several hours to reach target temperatures, but retain heat for far longer once up to speed thanks to the thermal mass effect.

Which thermostats are recommended for each system in 2026?

For water-based systems, advanced controls like the Heatmiser NeoStat V3 and Slimline V4 offer precise scheduling, multi-zone support, and energy-saving features that meet current regulatory needs. Electric systems benefit from smart WiFi thermostats with responsive floor sensors and user-friendly interfaces. Models like the Heatmiser NeoStat WiFi deliver optimal daily management and safety for sensitive finishes.

How do I keep my underfloor heating working at peak efficiency?

Start with thorough subfloor insulation, use room zoning, pair your system with a high-efficiency heat source, and schedule regular service checks. For water systems, annual professional servicing is recommended. For electric systems, simple annual controller and sensor checks are usually sufficient.

What's the best way to resolve common underfloor heating issues?

For water systems, bleeding air from circuits and confirming correct manifold settings often clears cold spots. For electric systems, resistance checks and visual cable inspections are crucial. Uneven heating often originates from poor subfloor prep or poorly fitted insulation, so always double-check groundwork before laying any floor coverings.

Bringing Warmth Home: Your Next Step

Perfecting your underfloor heating installation in 2026 means embracing efficiency, compliance, and attention to detail every step of the way. Whether fitting out a new build, planning a major renovation, or completing a one-room upgrade, sticking to best practice and industry expertise protects both your investment and your comfort for years to come.

Ready for expert technical support, comprehensive supplies, and advice tailored to your project? Explore offerings from ThermRite, where trade professionals and ambitious renovators find trusted solutions. Move forward with clarity and confidence, and transform your space into the cosiest place to be.
