Complete Step-by-Step Guide and Essential FAQs: Underfloor Heating Installation
The Ultimate Guide to Underfloor Heating Installation in 2026
Considering a major upgrade to your home's heating? Few solutions match the all-round comfort and energy savings of underfloor heating. In the UK, interest in these efficient, invisible systems has soared, and installation standards have never been higher. Whether you're planning a new build or breathing fresh life into an older home, understanding the latest methods and rules is essential.
Meeting the Latest 2026 UK Regulations
Since May 2026, strict new requirements govern water (wet) underfloor heating systems in the UK. Every installation. If new or substantially renovated. Must set flow temperatures no higher than 55°C. This measure does more than satisfy an environmental checklist; it safeguards efficiency, integrates perfectly with sustainable heat pump systems, and helps households trim energy bills by as much as 30 percent. Think of it as a new baseline for comfort, efficiency, and lasting performance.
Water or Electric? Picking the Right System
The decision comes down to space type, project scope, floor construction, and budget. Water underfloor heating shines in large, open-plan living areas and entire new builds. Deeply integrated within screeded solid floors, these systems offer consistent warmth and outstanding energy efficiency, particularly when coupled with low carbon heating like air source heat pumps. They do require more planning and upfront work, but the result is even, gentle heat with low long-term running costs.
Electric underfloor heating works best for retrofits, modest upgrades, and rooms with minimal changes to floor height. Unrolling electric mats or installing cable systems avoids large structural work, making it possible to add warmth to a bathroom, loft conversion, or upstairs bedroom without hassle. Electric systems heat up rapidly and are often chosen for spaces that don't need continuous heating.
For a deeper look at how these two approaches compare across different property types and budgets, the 2026 underfloor heating system selection framework covers every scenario in detail.
Which System Suits Each Floor Type?
Solid floors, such as new concrete slabs, favor water-based systems. The pipes are laid out over insulation boards and secured before receiving a screed, delivering heat evenly and efficiently.
Suspended timber floors, or old floorboards, accept both water and electric options. Slimline water systems exist for these applications as long as there's enough space between joists. However, electric mats or cables remain less invasive, typically preferred when floor heights or extensive changes to the subfloor must be avoided.
For simple refurbishments or heating smaller zones, electric underfloor heating offers impressive convenience. Water-based systems truly come into their own for larger projects, whole-house comfort, and new builds where floors are being installed from scratch.
Step-by-Step Installation: Water Underfloor Heating
Installing a water-based underfloor heating system in 2026 involves careful planning and strict adherence to current standards. Here's how each stage unfolds:
1. Preparing the Subfloor
Start with a clean, even, and completely dry subfloor. Remove all debris and check for moisture, as trapped dampness can compromise insulation and cause long-term damage.
2. Laying Insulation
High-quality insulation is non-negotiable. Specialized PIR or XPS insulation boards should be fitted directly above the subfloor, their thickness tailored to your project's requirements. Reflective foil layers may also be introduced to direct as much heat as possible upwards, maximizing efficiency and minimizing losses to the ground or space below.
3. Installing Edge Insulation
Install perimeter (edge) insulation around all room borders. This flexible strip allows for expansion of both the floor and screed as the system warms, preventing cracking and thermal bridges.

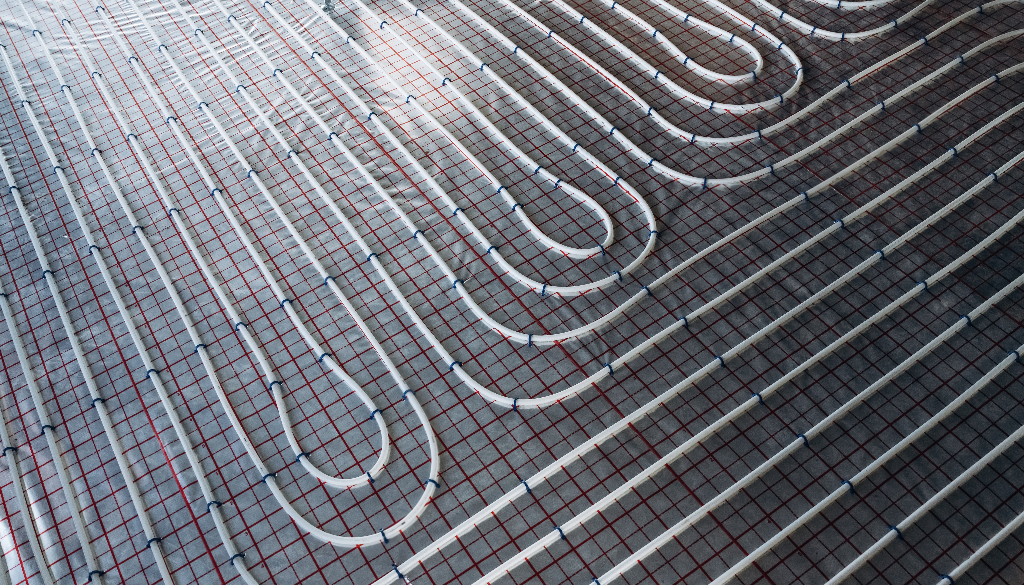

4. Positioning and Securing Pipes
Carefully lay your heating pipes according to the design layout, maintaining consistent spacing (typically 150-200 mm) to avoid hot and cold spots. Secure pipes with fixing clips or tracking panels to keep them firmly in place. For installations requiring maximum durability and dimensional stability, WRAS-approved multilayer pipe provides a certified standard of performance under the new flow temperature regulations.
5. Connecting to the Manifold
All pipes connect to a central manifold, which regulates both water flow and temperature. The manifold should be located in an accessible spot and attached to a sound wall. Run pressure tests at this stage to ensure there are no leaks before proceeding. A premium manifold assembly with auto air vents and temperature gauges simplifies commissioning and makes ongoing balancing straightforward.
6. Screeding and Testing
Pour a specialist screed over the pipes and insulation, following manufacturer guidelines for thickness. Leave adequate time for curing, usually a minimum of one week per centimetre of screed for sand and cement types. Only then can you commission the system, gradually raising the temperature according to a staged plan to protect the screed.
Step-by-Step Installation: Electric Underfloor Heating
Electric systems have a slightly different process, which can be completed more quickly. Ideal for modernising single rooms or small zones.
1. Preparing the Subfloor
As with water systems, thorough checks and cleaning are crucial. The subfloor must be dry and free of debris.
2. Laying Insulation Boards
Lay insulation boards approved for electric underfloor heating directly on the subfloor, fixing them with adhesive or screws as recommended. For foil-based or mat systems, ensure the underlay is compatible for optimal energy savings.
3. Rolling Out Mats or Laying Cables
Follow the zone layout precisely: electric mats unroll in a grid, while loose cables are clipped in place according to the calculated design. Keep heating elements clear of wall edges and fixtures, with at least 50 mm between cables and other objects.
4. Connecting & Testing
The circuits must be connected to the thermostat and power supply, ideally by a qualified electrician to comply with the latest electrical safety standards. Complete all resistance and continuity checks before embedding the system beneath a self-levelling compound or directly under suitable floor coverings.
5. Installing Floor Coverings
After tests confirm the system is functioning perfectly, floor coverings can be laid over the top. Tiles, engineered wood, or vinyl work superbly, offering optimal heat transfer without the risk of warping or insulation loss.
Best Practices: Modern Insulation for Peak Performance
Superb insulation is the backbone of any high-efficiency underfloor heating setup. Without it, energy seeps away, bills rise, and the warmth you expect never fully materialises. For both water and electric systems, the 2026 standard is clear: install robust insulation boards tailored to the floor's construction. These boards. Typically made from PIR or XPS. Deliver high compressive strength and low thermal conductivity. Where permitted, a reflective foil layer can be added to further boost energy savings, especially in suspended floors or upper levels. Reflective foil works by bouncing radiant heat upward, ensuring your heating system delivers maximum comfort per kilowatt consumed.
Subfloor insulation isn't the only layer that matters. Edging strips around the perimeter stop heat escaping into adjacent walls and floors. For electric mats on upper floors, specialist insulation boards provide a much-needed barrier against downward losses. Homes with solid concrete bases depend on thick, continuous insulation beneath the heating pipes or wires. This keeps heat where it's needed and stops unwanted thermal leaks.
Simple as it might look, skipping or skimping on insulation will nearly always backfire. Whether you're dealing with new additions or existing floors, invest in the proper insulation early to enjoy the full benefits of your underfloor heating for decades.
Frequently Asked Questions
What are the running costs for underfloor heating in 2026?
In a well-insulated UK home, water underfloor heating annual running costs average between £6 and £10 per square metre annually, driven by the efficiency of modern systems and compliance with the 55°C flow temperature cap. Electric systems' costs depend on electricity tariffs and usage but typically sit higher, especially for whole-property heating, making them ideal for smaller spaces or single-room use.
Can underfloor heating be paired with a heat pump?
Absolutely. Water underfloor heating is a perfect match for air or ground source heat pumps due to its low-temperature operation. Understanding the full picture of UK heat pump costs, grants, and available technology helps homeowners plan this combination effectively and maximise available incentives.
Are smart controls compatible with underfloor heating systems?
Yes, most contemporary underfloor heating systems, whether water or electric, work with smart thermostat zoning controllers and home automation platforms. These enable precise temperature scheduling, remote operation, and system monitoring through mobile devices, supporting newfound control over energy use and comfort. For a comprehensive overview of how these devices integrate with water-based systems specifically, Heatmiser thermostat compatibility and smart features covers the key considerations.
Which floor coverings work best with underfloor heating?
Tile, stone, engineered wood, and high-quality vinyl coverings are all excellent partners for underfloor heating. These materials offer low thermal resistance, ensuring swift and even heat transfer. While carpet is compatible, it requires careful selection of underlay and pile thickness to avoid reducing efficiency.
How much preparation is needed when retrofitting underfloor heating?
Retrofitting electric mats requires minimal upheaval; mats roll out over existing floors after insulation is installed. Water-based systems demand more planning, and often some floor height adjustment, particularly in older properties, but slimline kits and suspended floor solutions are available. Assessment of floor build-up and preparation of the subfloor are always essential first steps.
Your Next Steps: Achieving Year-Round Comfort and Savings
The journey to efficient, comfortable heating starts with understanding your space and choosing the right system to match. Water underfloor heating provides lasting savings where installation is possible, pairing elegantly with modern heat pumps and robust insulation. Electric systems offer a nimble upgrade for zones where speed and minimal disruption matter.
Commit to careful planning at every stage and prioritise proper insulation. These are the essential ingredients for an underfloor heating installation that exceeds expectations, stays compliant, and delivers savings for many years. Ready to transform your living space? Explore your options with a trusted supplier like ThermRite and create the foundation for warmth and comfort that lasts.
