Water vs Electric Underfloor Heating: Installation Guide, Best Uses and FAQs for UK Homes

Choosing underfloor heating for your project

Underfloor heating can make a bathroom floor comfortable, warm a new extension, or provide low temperature heat across a whole home. The right system depends on the size and scope of the job, the floor construction, available depth and the heat source you plan to use.

A water based system, also called wet or hydronic heating, circulates heated water through pipes beneath the floor. An electric system uses heating cables or mats. Both can work well, provided the design matches the room's heat loss and the floor covering.

For a new build or a substantial renovation, water heating is often worth considering across several rooms, especially when a suitable boiler or heat pump is planned. Understanding heat pump compatibility with underfloor systems can shape the design before pipework goes down. Electric heating is often easier to add to one room, such as a bathroom, where a thin mat or cable system can fit into a limited floor build up. Scope matters: a small electric installation may be straightforward, while using electric heating across a large area can have different running cost implications. Reviewing water underfloor heating cost breakdowns against electric running costs helps compare the whole installation and expected use, not only the equipment price.

The floor area that can actually be heated is important. Fixed units, baths, kitchen cabinets and other areas where heat should not be trapped need to be excluded from the layout. A heat loss calculation helps establish whether the available heated floor can meet the room's demand. Without that check, a system may feel pleasant underfoot yet struggle to heat the space on cold days.

Plan the floor before choosing the system

Start by checking the existing floor construction and the finished floor height. A retrofit can be constrained by thresholds, doors, stairs, kitchen units and adjoining rooms. Find out how much depth is available for insulation, heating elements, screed or levelling compound, adhesive and the final finish. Low profile electric products may suit shallow renovations, while many water systems need more depth unless designed for a particular retrofit build up.

Insulation beneath the heating layer is essential. It encourages heat to travel towards the room rather than disappearing into a cold slab or void, and it can improve response and operating efficiency. The correct product and thickness depend on the floor, the system and the manufacturer's design. Perimeter heat loss may also need attention. Do not assume that a generic insulation board or a stated thickness will suit every floor.

Work out the room's heat loss and the output the usable heated area can deliver. A qualified designer can assess insulation levels, windows, ventilation and room dimensions. If underfloor heating is intended as the main heat source, this calculation is particularly important. Where the floor's available output cannot meet the design heat demand, another heat emitter or improved insulation may be needed.

The heat source also influences the choice. Water systems can pair well with heat pumps because underfloor heating can distribute warmth at lower water temperatures than many radiator systems. They can also connect to boilers when correctly designed, often through a pre-assembled manifold system that regulates flow to each circuit. Electric systems are independent of the wet heating circuit, though the electrical supply and circuit capacity must be checked by a qualified professional.

Before ordering, read the system instructions and flooring manufacturer's requirements. Confirm compatibility, maximum floor surface temperature, sensor position, electrical provisions, screed or adhesive requirements, and any commissioning procedure. Working with an established trade underfloor heating supplier can simplify sourcing compatible components across a project. ThermRite can provide product guidance as a supplier; design, electrical work and installation should be handled by suitably qualified professionals where required.

Installation overview for a water system

The exact method varies with the chosen pipe system and floor construction, so follow its technical instructions throughout. A full underfloor heating installation walkthrough can help clarify sequencing before work starts. A typical installation moves through these stages:

1. Design and heat loss: Calculate each room's heat demand, establish the heated floor area, plan pipe circuits and spacing, and decide how each room will be controlled. The manifold position and connection to the heat source should be planned before work begins.
2. Prepare the subfloor: The base needs to be sound, clean and suitable for the specified insulation and build up. Resolve unevenness and moisture concerns using the construction system's requirements.

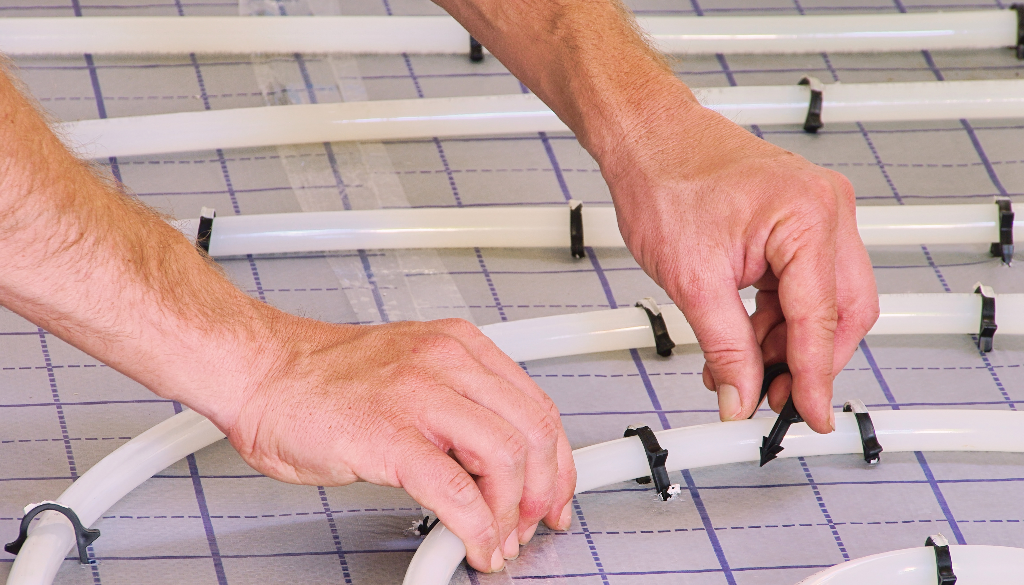

3. Fit insulation and perimeter details: Install the specified insulation and edge protection. Secure the pipe fixing system so the planned layout can be maintained.
4. Lay and connect the pipework: Fit pipe circuits to the designed spacing, avoiding prohibited zones and keeping bends within the pipe's limits. A multilayer underfloor heating pipe should be matched to the manifold connections and identified clearly for each circuit.
5. Test before covering: Pressure test the pipework according to the system instructions and keep it in the required test condition during the relevant floor works. Record the results. A pressure test is not a substitute for full system commissioning.
6. Apply the floor build up and finish: Install the specified screed or covering layer at the required depth. Allow it to cure and dry as directed before following the gradual heat up procedure. Fit the compatible floor finish only when the base is ready.
7. Commission and set controls: A competent heating professional should balance the circuits, check flow and controls, and set appropriate operating schedules and temperatures, typically using a programmable room thermostat to manage each zone.

A water system's finished height varies considerably. Pipework embedded in a screed creates a deeper build up than some overlay or low profile systems. Ask for the complete proposed section, rather than relying on a pipe diameter or a headline system thickness.

Installation overview for an electric system

Electric mats and loose cable systems are commonly used for single rooms and renovations. They still need careful planning, particularly around fixed fittings and electrical safety.

1. Confirm the layout and supply: Measure the clear heated area, choose a kit designed for that area and check the circuit requirements with a qualified electrician. Heating cable must not be cut or shortened unless the specific product instructions expressly allow it; many systems require the cable length to remain unchanged.
2. Prepare and insulate: Make the subfloor stable, clean and level, then install the approved insulation or preparation layer for the chosen system. Confirm that the floor construction and any levelling compound are compatible.
3. Position the mat or cable: Lay it to the manufacturer's spacing and layout rules. Keep heating elements away from areas where heat could be trapped, such as beneath fixed furniture or sanitaryware, unless the product is approved for that location. Do not cross, overlap or damage the cable.
4. Install the sensor and test: Place the floor temperature sensor probe in the specified position, commonly between heating runs, and test electrical resistance at the required stages. Keep test records and do not proceed if readings fall outside the product specification.
5. Cover and connect: Embed the system in the specified adhesive or levelling compound, avoiding damage while working. Electrical connection, protective devices and thermostat installation must meet applicable UK requirements and be completed or verified by a qualified electrician.
6. Fit the finish and commission: Use a floor covering approved for underfloor heating. Set the thermostat's floor limit where required, then follow the manufacturer's curing and start up instructions.

Electrical work in bathrooms and other special locations needs particular care. The applicable Building Regulations and electrical safety rules depend on the work and location. Check the current requirements with Building Control or a registered competent person, and have the final connection and testing completed by a suitably qualified electrician. Never energise a system before the specified tests and covering materials are ready.

Common installation mistakes to avoid

Skipping heat loss and layout planning can leave too little heated floor area to meet the room's demand. Measure the clear area and design output before selecting a kit or pipe layout.

Using too little or unsuitable insulation sends more heat into the structure below. Choose insulation for the actual floor construction and install it as specified.

Changing cable spacing or pipe layout on site can create uneven temperatures or alter system output. Follow the planned centres and keep electric elements clear of prohibited zones. Never cut a heating cable to make it fit.

Covering the system before testing makes later faults harder and more expensive to locate. Test and document pipework or electrical elements at the stages required by the manufacturer, before and during covering where specified.

Choosing a floor finish without checking its limits can impair performance or risk damage. Confirm the finish is approved for heated floors, obey its maximum surface temperature, and follow any restrictions on underlay, adhesive, rugs or furniture.

Starting the heating too early or too abruptly can damage screed, adhesive or the floor covering. Respect curing times and use the prescribed gradual commissioning procedure.

Frequently Asked Questions

Can underfloor heating go under tiles, wood or vinyl?

Yes, if the floor finish and heating system are approved for use together. Ceramic and stone tiles are common choices. Engineered wood and some vinyl products can also work when their manufacturers permit underfloor heating and specify the temperature limit and installation method. Check the floor covering, underlay and adhesive requirements as a complete system. A floor sensor can help control surface temperature where required.

How thick is the floor build up?

There is no single standard thickness. A cable mat beneath tile may add relatively little height, while insulation, levelling layers and finishes all contribute. Water pipework in a screed generally needs a deeper build up than a low profile overlay product. Ask the designer or supplier for the full section drawing, including insulation and finish, and check it against doors and thresholds.

How long does underfloor heating take to warm up?

It depends on the system, insulation, floor mass, room conditions and thermostat settings. Electric heating close to a tile surface may respond faster than water pipes embedded in a thick screed, which takes longer to warm but can retain heat. Avoid relying on a universal time estimate. A properly set schedule can bring the floor to temperature when the room needs it.

Can underfloor heating be the home's main heating source?

It can, when the system is designed to meet the calculated heat loss of each room and the heated floor area can provide enough output within safe floor temperature limits. A heat loss assessment is essential, particularly for rooms with high ceilings, large glazed areas or limited usable floor space. If the figures do not work, supplementary heating or building fabric improvements may be needed.

Which system is best for a bathroom or a single room?

Electric heating is often a practical choice for a small room because it can be installed independently of the home's water heating circuit and may suit a shallow floor build up. Water heating may make sense when it connects conveniently to a broader project or an existing manifold. Compare installation complexity, floor depth, electrical capacity and expected use before deciding.

What should I check before starting?

Confirm the room heat loss, usable heated area, floor build up, insulation specification, compatible floor finish, thermostat and sensor positions, and the manufacturer's testing and commissioning instructions. Check electrical requirements with a qualified electrician, especially in bathrooms. Seek professional design and installation support whenever the work involves system sizing, connection to a heat source, structural floor changes or regulated electrical work.

Make the choice with the whole floor in mind

Water heating is often well suited to new builds and larger, multi-room projects, while electric heating can be a convenient route for a bathroom or a focused renovation. The best answer comes from matching the system to the room's heat loss, floor depth, insulation, heat source and finish.

Before you order, have the proposed layout and complete floor build up checked, and make sure testing and commissioning are part of the plan. Speak with ThermRite as a supplier for product guidance, then involve the qualified heating and electrical professionals your project requires. A little careful preparation can mean an even, comfortable floor for years to come.
