2026 Ultimate Guide to Underfloor Heating Installation: Water vs Electric, Best Systems & Your Top FAQs Answered
Your Step-by-Step Guide to Underfloor Heating Installation in 2026
Bringing underfloor heating into your home offers more than just a warm floor: it's an investment in comfort, energy savings, and futureproof design. The right installation process depends on a few key factors. Whether you're working with a fresh build, retrofitting an older property, updating a timber floor, or tiling a bathroom.
Solid Screed Floors: Water and Electric Systems

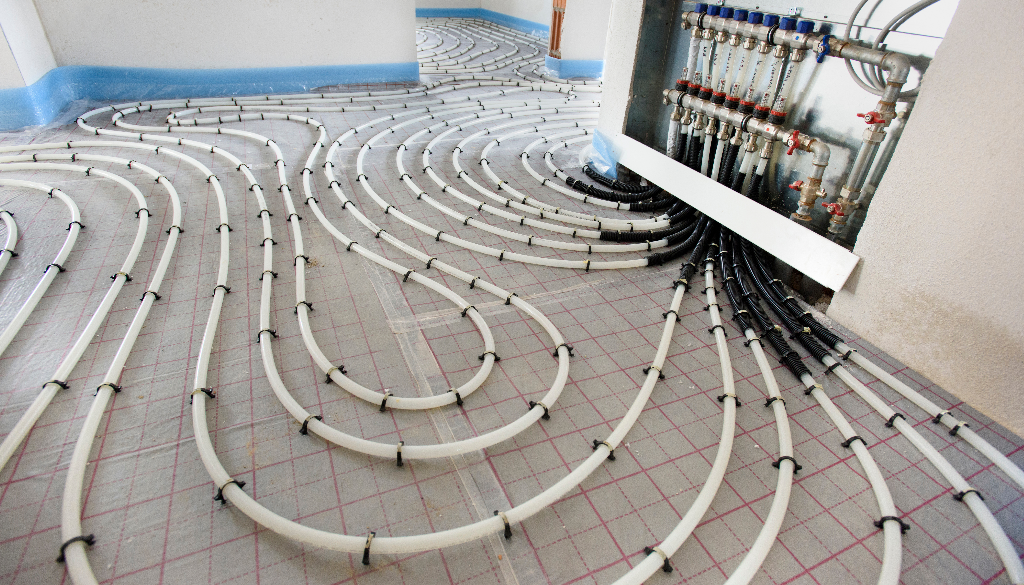

Water underfloor heating for solid screed floors starts with robust insulation, set down to trap heat and prevent losses. Next, the pipes are laid in looping patterns across the insulated layer. Spacing and layout are planned to ensure heat reaches every part of the room. Secure the pipes, pressure-test them, then pour a screed mix, covering the network so only the connection points remain accessible. You'll need to allow the screed to cure fully, which takes up to four weeks depending on thickness. Once cured, connect the heating to your controls and system manifold, then gradually commission the system, following the 55°C flow temperature limit that's now a legal requirement in 2026. For electric systems, the process is very similar, except heating cables or mats are rolled out directly onto insulation, then covered by self-levelling compound or screed. As always, resistance checks must be passed before finishing and connecting controls.
Suspended Timber and Retrofit Projects
Timber floors and renovations often call for a lighter, less intrusive approach. With water systems, insulation boards are fixed between joists, then spreader plates or specially designed panels diffuse heat upward through the boards above. For electric systems, ultra-thin mats or foil-based cables are the go-to solution. These can slide right underneath your chosen floor finish, keeping floor height increase minimal. Always check the total build-up matches your room's height limits. A thorough underfloor heating installation best practices guide can help you navigate the specific requirements for retrofit scenarios with confidence.
Bathrooms and Tiled Spaces
Bathrooms demand extra care: electric mats are often preferred due to their ease of fit and rapid heat-up times. Waterproofing, earthing, and safety checks are critical, and the heating layer is usually paired with a flexible tile adhesive to finish the floor. Water pipes can be fitted in larger bathrooms for whole-house compatibility but keep to industry setbacks from walls and fixtures for compliance.
For every type of installation, a thorough plan and meticulous preparation make the difference between success and a chilly disappointment.
Choosing Between Water and Electric Underfloor Heating in 2026
Selecting the best system hinges on your property, future plans, and personal preference. Electric underfloor heating remains the simplest option for single rooms and retrofits, particularly when speed, low floor build-up, and minimal disturbance are priorities. Water-based solutions require more upfront work and a slightly higher initial budget, but they shine for whole-house setups and long-term efficiency. They're especially appealing in new builds where floor depth and layout can be planned from scratch.
Cost, Efficiency and Regulations: What's Changed?
By 2026, water versus electric underfloor heating running costs differ considerably between the two: electric systems average between £7 and £9 per square metre annually to operate, while a water system typically falls between £4.50 and £6 per square metre per year. Installation costs for electric options hover around £40-£120 per square metre, whereas water installations span £70-£190 per square metre, sitting at the lower end for new builds and rising for retrofits or complex layouts.
Current standards insist all new or significantly upgraded water systems must operate at flow temperatures no higher than 55°C (thanks to updated Part L building regulations). This cap is one of the major changes homeowners and professionals need to plan for. It supports more sustainable, efficient heating and makes water-based systems an ideal match for low-temperature heat pump compatibility or solar thermal panels.
Think about your property's needs in detail: large open-plan spaces, homes aiming for ultra-low running costs, or anyone considering a heat pump will benefit more from water underfloor heating. Electric systems, meanwhile, offer far more flexibility and minimal disruption to an existing home. Making them a popular choice where a quick upgrade is sought or in rooms like kitchens and bathrooms.
Optimising System Performance: Controls, Zoning, and Smart Integration
Efficiency isn't just about the heating pipes or cables themselves. Modern underfloor heating gains real advantages from smart controls, careful zoning, and quality thermostats. In 2026, the majority of systems (both electric and water) arrive ready for integration with smart home platforms, allowing you to set schedules from your phone, fine-tune room temperatures remotely, and build automated routines for comfort and savings.
Room zoning is fundamental for cutting unnecessary energy use. Each area features its own control loop or thermostat, responding independently based on real-time demand. With water systems, zoning valves and manifold actuators on the manifold let you split larger homes into manageable sections, resulting in tailored comfort and substantial energy savings. Electric mats respond even faster, and in compact spaces, adjusting a single room's settings is as easy as a tap on your preferred app.
Modern controls now offer learning functionality: they adapt to your habits and local weather, anticipate when to ramp up or dial down the heat, and can even switch off automatically when a window is opened or you leave home. A Heatmiser neoStat WiFi thermostat is one example of how app-connected controls make this level of precision effortlessly accessible. Embracing these features maximises both comfort and the return on your investment.
Key Mistakes to Avoid and Staying Compliant in 2026
Successful underfloor heating projects depend as much on the groundwork as on the heating system itself. Failing to install proper insulation is one of the most costly errors. Without it, heat escapes into subfloors, pushing bills upward and leaving rooms colder than intended. For water systems, uneven pipe placement or layout mistakes can cause frustrating cold spots and poor heat distribution. With electric systems, damaging wires or laying incompatible flooring will result in inefficiency or even system failures.
Another common pitfall is skipping pressure tests (or resistance tests for electrics) before finishing the floor. Resolving faults becomes exponentially harder after screed or tiles go down. Always review the manufacturer's and supplier's guidelines thoroughly. Regulations in 2026 not only mandate a maximum water flow temperature, they also demand robust insulation and correct setup of controls for each zone. Overlooking controls wiring or placing floor sensor probes in poor locations can lead to inaccurate readings and wasted energy.
Installing in line with the latest UK Building Regulations is not only about compliance, it's crucial for efficiency and safety. Schedule a final commissioning by a qualified professional to ensure every element of your system is signed off before use.
Expert Tips: Comfort, Energy Savings, and Troubleshooting
For the best results, always start with room-by-room heat loss calculations. This provides a blueprint for pipe spacing, cable wattage, and insulation thickness. Removing guesswork and ensuring total comfort. Take time when installing insulation, as even minor gaps can allow heat to seep away.
Choose floor coverings thoughtfully. Tile, stone, and engineered wood all transfer heat beautifully. For carpets, aim for a combined tog rating (carpet plus underlay) below 2.5, as thicker coverings can trap heat underneath, making the system sluggish and less effective.
Smart thermostats and zoning controls play a starring role in modern setups. They not only learn your schedule but react to weather changes and occupancy, driving down bills while enhancing comfort. Pairing water underfloor heating with a heat pump or renewable source is now the industry gold standard for sustainable living. If you're exploring that route, heat pump grant schemes in 2026 could significantly reduce your upfront costs.
Running into delayed heating or cold patches? Start by confirming the insulation is performing as expected, that pipes/cables are continuous and undamaged, and that thermostat sensors are in the correct positions. Most issues stem from skipped steps or insufficient commissioning, so double-checking workmanship during the install is invaluable.
Frequently Asked Questions
What is the new 2026 maximum temperature rule for water underfloor heating in the UK?
The updated Building Regulations in the UK require all newly installed or significantly upgraded water underfloor heating systems to operate with a flow temperature capped at 55°C. This measure supports improved energy efficiency and system compatibility with heat pumps and renewables.
Can I install underfloor heating with any type of floor covering?
Underfloor heating is compatible with most floor finishes, including tile, stone, laminate, engineered wood, and even carpet. With the caveat that combined carpet and underlay must have a tog value of 2.5 or lower. Always check your floor manufacturer's recommendations for heat suitability.
Is water or electric underfloor heating more efficient for whole-house projects?
Water systems are generally more efficient for heating large spaces or entire homes, particularly when paired with a heat pump. They require a bigger upfront investment but reward you with lower running costs. Electric systems are typically used for single rooms or retrofits where quick installation and low build-up are priorities.
Are smart thermostats essential, or just a luxury?
Modern smart thermostats are highly recommended, not just for convenience but for significant improvements in energy use and comfort. Zoning and app scheduling help ensure you use heat only where and when you need it.
What maintenance is involved with underfloor heating?
Both water and electric systems require minimal routine maintenance. Annual inspections for water systems involve checking for leaks or system pressure, while electric systems should have periodic resistance checks and thermostat calibration.
Do I need a professional to install underfloor heating?
DIY is possible for confident individuals, especially with electric mats for straightforward rooms. Complex layouts, water systems, and compliance with 2026 building standards are best handled by experienced professionals. Always consult your supplier, such as ThermRite, for detailed installation guides and support.
Bringing Underfloor Heating Home in 2026
Every successful underfloor heating project starts with careful planning, attention to quality materials, and respect for current standards. Your choice between water and electric systems depends on your home and aspirations, but with the latest insulation, smart controls, and proper zoning, either option promises years of trouble-free comfort and energy savings.
Ready to take the next step? Reach out to a trusted supplier like ThermRite for expert advice, system selection, and practical installation guides. With the right support, your floors will soon be delivering warmth and value well into the future.
